24KW High Efficiency Electric Steam Boiler License Free

1. Product model: DM24-0.8, body model: LDR0.051-1.0

2. Rated heating power: 24KW

3. Rated steam capacity: 34.4kg/h

4. Saturated steam temperature: 170℃

5. Power supply: 380V/50HZ

6. Heat output: 20640kcal/h

7. Rated steam pressure: 0.7Mpa

8. Air outlet diameter: DN15

9. Water inlet diameter: DN15

10. Sewage discharge diameter: DN15

11. Control mode: LCD display controller

12. Heating tube: 2 sets

13. Product size: W*H: 660*420*1230mm

14. Single unit wiring requirements: ≧10mm ²

• Unique internal structure design that does not require boiler license

The water volume of this series of products is less than 30L, which is within the scope of the state's exemption from boiler license, that is, no boiler license is required. The furnace is equipped with a built-in steam-water separator, which solves the problem of steam carrying water and further ensures the high quality of steam.

• Computer welding LCD display fully automatic intelligent electronic control system

The boiler operating system is fully automatic, and the circuit board welding is all computer welding, which is more stable and reliable than traditional manual welding . All operating states can be seen at a glance on the LCD screen. You can observe the working state of the boiler electric heating tube, the boiler water level, the high and low steam pressure, the water pump running state, the fault alarm state, etc. on the display screen. The timing control of the four time periods is more convenient, allowing you to grasp the boiler operation status at any time and use it with more confidence.

• Using high-quality core components - electric heating tube

The electric heating tube is not only made of high-quality thick-walled 316L stainless steel tube , with a service life that is 30% longer than the commonly used 304 stainless steel tube, but also uses imported high-temperature magnesium oxide powder and sealing materials, which can withstand high temperatures up to 900°C . This better ensures the service life of the electric heating tube. In addition, the electric heating tube is connected to the furnace body and flange, which is convenient for replacement, repair and maintenance.

• Use high-quality components

All pipes and instruments are connected with copper pipes and use domestically renowned electrical appliances - Delixi electrical appliances, which are safe and reliable to use.

• Multiple interlocking safety protection function

The product is equipped with overpressure protection such as safety valve and pressure controller to prevent the boiler from exploding due to excessive pressure; it also has extreme low water level protection. When the water supply stops, the boiler will automatically stop working, preventing the boiler from drying out and causing damage or even burning of the electric heating element. The leakage protector ensures the safety of operators and equipment.

• The company has a professional X-ray flaw detection room and testing equipment . The boiler liner welds are shipped after passing the X-ray flaw detection and water pressure test, which is safe and has no hidden dangers! This is something that unqualified manufacturers do not have.

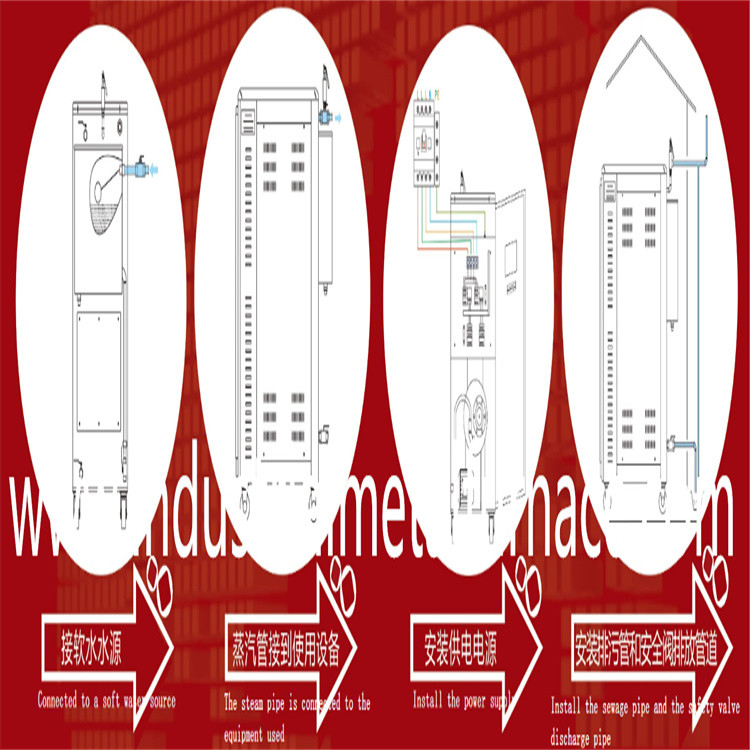

• Very easy to install and use

All products have passed strict debugging before leaving the factory. Users only need to connect the power supply and water source, press the start button and the boiler will enter fully automatic operation without complicated installation.

• Scientific design, exquisite appearance, environmental protection and high efficiency

The cabinet-style scientific design style is adopted, the internal design structure is reasonable, and the maintenance is extremely convenient. The boiler shell adopts CNC cutting and CNC folding one-time molding process, with fine workmanship; the shell surface is treated with high-temperature spraying, which is durable and beautiful. The electric boiler is clean to use, with a thermal efficiency of ≧98%, energy-saving and efficient!

1. Rated processing flow: 300L/H

2. Brand and control type: Runxin . Timing type

3. Regeneration method: dynamic regeneration in downstream or upstream direction

4. Water hardness: ≦ 0.03mmol/L

5. Power supply: 220V/50HZ

1. highly automated
water softening device automatically completes the softening and regeneration cycles according to the pre-set program. During operation, it does not require any manual operation except for the regular addition of regeneration salt, saving a lot of manpower and material resources and avoiding the adverse consequences caused by human operational errors.

2. The water quality is stable, safe and
high-performance resin and the scientific water distribution system in the resin tank enable the calcium and magnesium ions in the water to quickly exchange ions with the resin, and there is no possibility of "penetrating" the resin layer, thus ensuring the water quality and making the softened water non-toxic, odorless and harmless.

      3. The equipment has a compact and reasonable structure: easy operation and maintenance, high          efficiency and low consumption, water and electricity saving, and small footprint.

      4. Long service life: The special composite material is corrosion-resistant and aging-resistant, which        significantly extends the service life.

      5. The softening water treatment equipment is used in conjunction with the boiler to effectively                prevent scaling of the boiler liner and heating tube, effectively extending the service

      life of the boiler.

Leakage protector: DZ47LE-3/3 C 40A

AC contactor: CJX2-3210 220V

Electric heating tube

Specification: 12KW -320-146

Heating section material: 316L stainless steel
