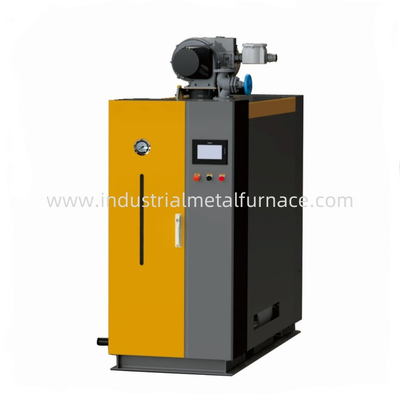

1. Boiler inspection and operational convenience
2. Water volume less than 29.5L, pressure 1.0/1.3/1.6MPa
3. No usage certificate, annual inspection or personnel operation certificate is required within the scope of exemption from pot inspection stipulated by the state
4. Having multiple chain security protections:
Electronic overpressure protection
Mechanical safety valve overpressure protection
Water shortage protection
Leakage protection
Overheating protection
Burner flameout protection
Water level logic error protection
5: Vertical through flow water pipe structure
6. No drum design, consisting of upper and lower headers and pipes
7. Efficient steam generation and rapid start-up
8. Integrated condensing heat exchanger configuration
9. Combination of high temperature energy-saving and low temperature condensation
10. High thermal efficiency of over 99%
11. Humanized industrial appearance design
Beautiful and compact, with a small footprint
Easy installation, maintenance, and operation
| Series product model | unit | LNE300-1.0
| LNE500-1.0
| LNE700-0.8
| LNE1000-0.8
| |
| Main product model | /
| LSS0.5-1.0-Q
| LSS0.5-1.0-Q
| LSS1-0.8-Q
| LSS1-0.8-Q
| |
| Rated steam volume | kg/h
| 300
| 500
| 700
| 1000
| |
| nox emission | mg/m³
| <30
| <30
| <30
| <30
| |
| Rated pressure | Mpa
| 1.0
| 1.0
| 0.8
| 0.8
| |
| Rated steam temperature force | ℃
| 184 | 184 | 175 | 175 | |
| water capacity | L | <30
| <30
| <30
| <30
| |
Thermal efficiency design | %
| 101%
| 101%
| 101%
| 101%
| |
Fuel design consumption
| Nm /h³
| 22.4
| 37.3
| 52.2
| 74.6
| |
Smoke exhaust temperature design
| ℃
| 58
| 58
| 58
| 58
| |
Whole machine weight
| kg
| 1400
| 1400
| 1600
| 1800
| |
Power supply parameters
|
supply voltage
| V/Hz
| 380/50
| 380/50
| 380/50
| 380/50
|
Total electric power
| KW
| 2.5 | 2.5 | 3 | 3.6 | |
| External dimensions | deep
| mm
| 2230
| 2230
| 2260
| 2230 |
wide
| mm
| 810
| 810
| 810
| 810
| |
tall
| mm
| 2100
| 2100
| 2100
| 2200
| |
external Interface | Inlet diameter | /
| DN25
| DN25
| DN25
| DN25
|
| Steam caliber | /
| DN32
| DN32
| DN40
| DN40
| |
Discharge caliber
| /
| DN40
| DN40
| DN40
| DN40
| |
Gas caliber
| /
| DN32
| DN40
| DN40
| DN40
| |
Chimney diameter
| mm
| φ219
| φ219
| φ219
| φ219
| |
Note: The enthalpy value of steam is 2772.1kj/kg based on a gauge pressure of 0.8MPa, and the calorific value of natural gas is calculated based on a lower heating value of 8500kcal/m ³;
The parameter configuration has changed due to the continuous improvement of the product, and the specific parameters are subject to the product leaving the factory.
