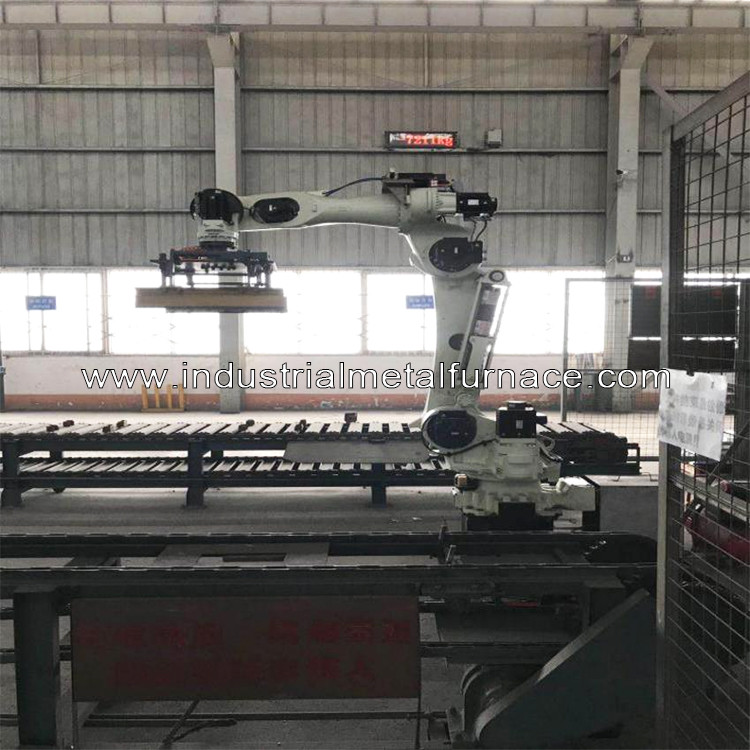

6.5kg Automatic Aluminum Ingot Stacking Machine with Siemens Robot
1. Product features
The stacking robot is equipped with Siemens module. The whole aluminum ingot stacker has fast stacking speed and stable performance.
2.Technical Parameters
|
2.1. Effective size of Grab: 700 length×800mm (open size or customized); 2.2. The rotation speed can be adjusted for one cycle: 3.5 ~5.0 seconds; 2.3 Applicable aluminum ingot weight: 6±1kg/piece; 2.4 Ingot stacking height: 1200mm (the ingot layers can be set); 2.5 Rotation angle of manipulator: 360 degrees free setting; 2.6 Stacking speed: about 3-5 layers/min; 2.7 capacity: about 5ton per hour equipped with ingot turnover function; |

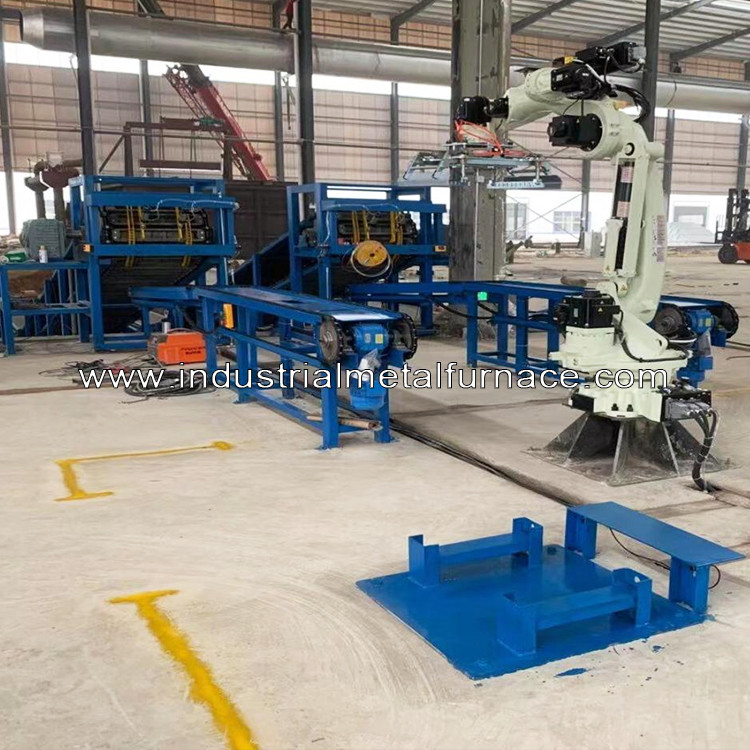

layout of aluminum ingot casting machine and ingot stacking machine:
Turnover Mechanism of Robot Type Aluminum Ingot Stacking Machine:
3. Features
3.1 Automatically grab the aluminum ingot and stack it at the specified position (or stack it to the conveying line and ingot drying line).
3.2 Multiple stacking layers are preset in the device to facilitate the setting of aluminum ingot stacking layers in the casting process.
3.3 The aluminum ingot casting machine is set with a temporary placement point, which can be placed at the temporary placement point for continuous production in case of failure of the conveying line.
3.4 The stacking robot rotates 90 degrees each time, respectively 0 degrees, 90 degrees, 180 degrees and 270 degrees (or 0 degrees and 90 degrees), so as to make the four corners of the whole stack flat.
3.5 Each layer consists of 7 aluminum ingots ( 7 aluminum ingots are grabbed each time), and the total weight does not exceed 55kg.
