Fully Robot Type Aluminum ingot stacking machine , Ingot stacker machine

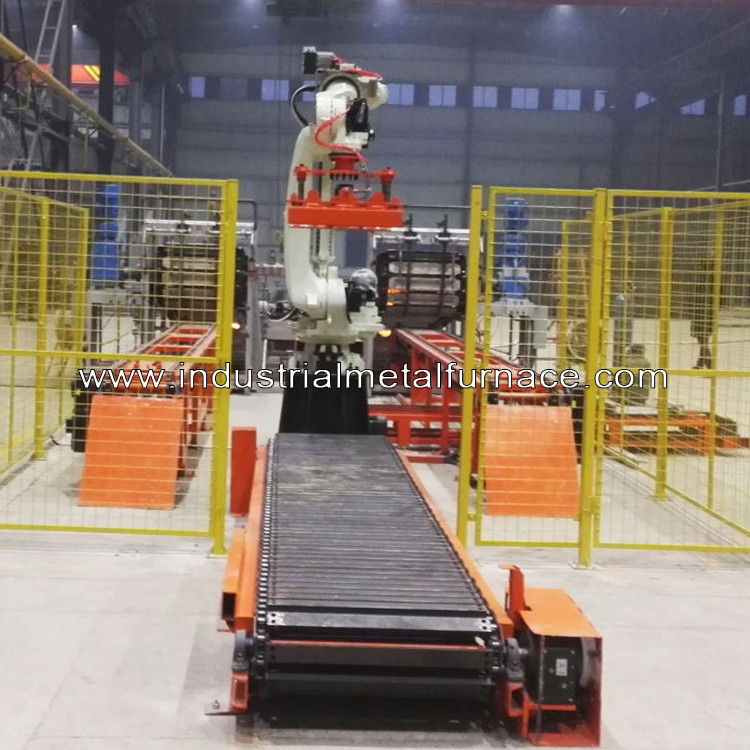

1. Ingot Stacking Robot
The automatic aluminum ingot stacking machine is used to stack the aluminum ingots, and it is equipped with Japan
Kawasaki 6-axis robot with 180kg lifting capacity. We will provide the operation manual, factory certificate and robot ID
card number for the stacking robot.
2. Using Condition
2.1. installation location: indoor (outdoor is not acceptable);
2.2. extreme maximum temperature: + 45 ℃;
2.3. extreme minimum temperature: - 20 ℃;
2.4. average temperature in the hottest month: + 34.2 ℃;
2.5. the seismic intensity is 7 degrees;
2.6. working ambient temperature: - 10-45 ℃;
3. Supply Scope of Aluminum Ingot Stacking Machine
| No. | Item | Unit | Q’ty | Configuration | Remark |
| 1 | Robot GP180 | pc | 1 | Yaskawa | Lifting 180kg |
| 2 | Robot calibrator | pc | 1 | Yaskawa | Accessories |
| 3 | Ingot receiving conveyor | pc | 1 | Wondery | Wondery |
| 4 | Robot base | pc | 1 | Wondery | Wondery |
| 5 | Robot communication control cabinet integrated cabinet | set | 1 | Mitsubishi / Siemens | Integrated communication |
| 6 | Grab aluminum ingot clamp assembly (including a set of accessories) | set | 1 | Wondery | Wondery |
| 7 | Falling ingot Guide | set | 1 | Wondery | Wondery |
| 8 | Automatic pneumatic hammer device | set | 1 | Wondery | Wondery |
| 9 | Intelligent voice broadcast warning speaker | set | 1 | Shanghai | Shanghai |
| 10 | Ingot turnover mechanism | Set | 1 | Wondery | Wondery |
| NOTE:The above configuration can be changed to brands of equivalent level without noticing the customer due to component availability. | |||||
