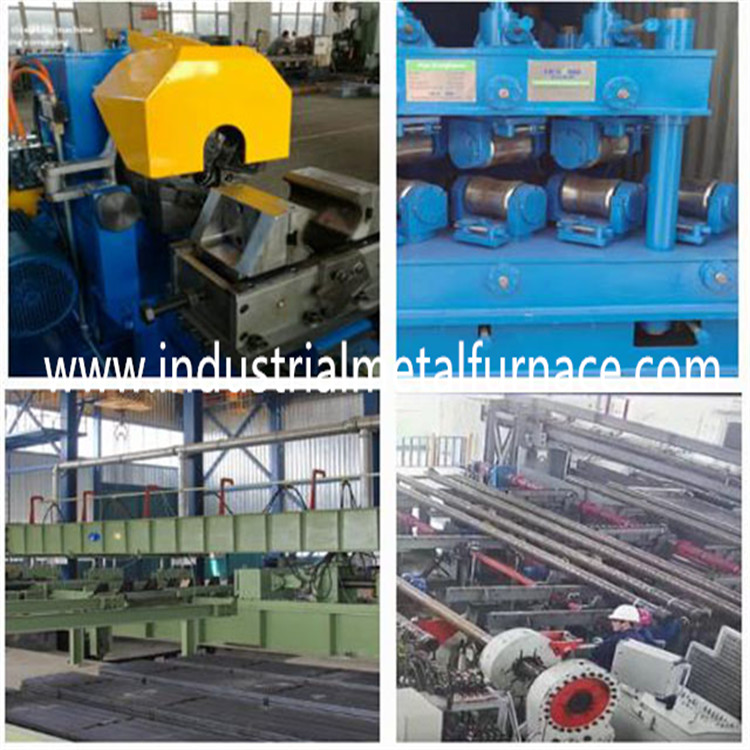

New high quality middle sized easy to operate PIPE PROCESSING EQUIPMENT
Automatic threading machine with stepping conveying
1. 1/2’’～2” Type
Automatic double-end threading, 5-8 pcs/min.
Threading head performance and capacity:
| Size | Spindle Speed | Cycle time(s) | Capacity (pcs/hrs) | Capacity (pcs/min) |
| 1/2’’ | 180r/min | 2～3 | 480 | 8 |
| 3/4’’ | 160r/min | 2～3 | 480 | 8 |
| 1’’ | 140r/min | 3～4 | 420 | 7 |
| 1 1/4’’ 1 | 20r/min | 3～4 | 420 | 7 |
| 1 1/2’’ | 100r/min | 4～5 | 360 | 6 |
| 2’’ | 80r/min | 4～5 | 300 | 5 |
2. 1/2—6’’auto threading machine
Automatic double ends threading, 1-3 pcs/min.
Threading head performance and capacity
| Size | Spindle Speed | Cycle time(s) | Capacity (pcs/hrs) |
| 2 1/2’’ | 65r/min | 5～10 | 240 |
| 3’’ | 55r/min | 8～15 | 220 |
| 3 1/2’’ | 50r/min | 10～16 | 200 |
| 4’’ | 42r/min | 18～22 | 180 |
| 5’’ | 35r/min | 20～25 | 150 |
| 6’’ | 28r/min | 25～30 | 120 |
3.Automatic straightener
1. Ø168mm pipe straightening Speed : 20～40m/min
2. Ø76mm pipe straightening speed 80m/min
4.Automatic hydrostatic tester
Double workstation hydrostatic tester for Ø219mm
4-workstation hydrostatic tester
6-workstation hydrostatic tester
8-workstation hydrostatic tester
16-workstation hydrostatic tester
5.Automatic socketing machine
Description of Automatic socketing machine: The production line includes feeding
platform, feeding and retaining device ,stepping conveyor ,left alignment device,
2 sets of threading machine (1 left and 1right) right alignment device, hooping
front alignment socketing machine , socketing machine, collecting and discharging
platform, and corresponding hydraulic ,pneumatic, electrical control system.
