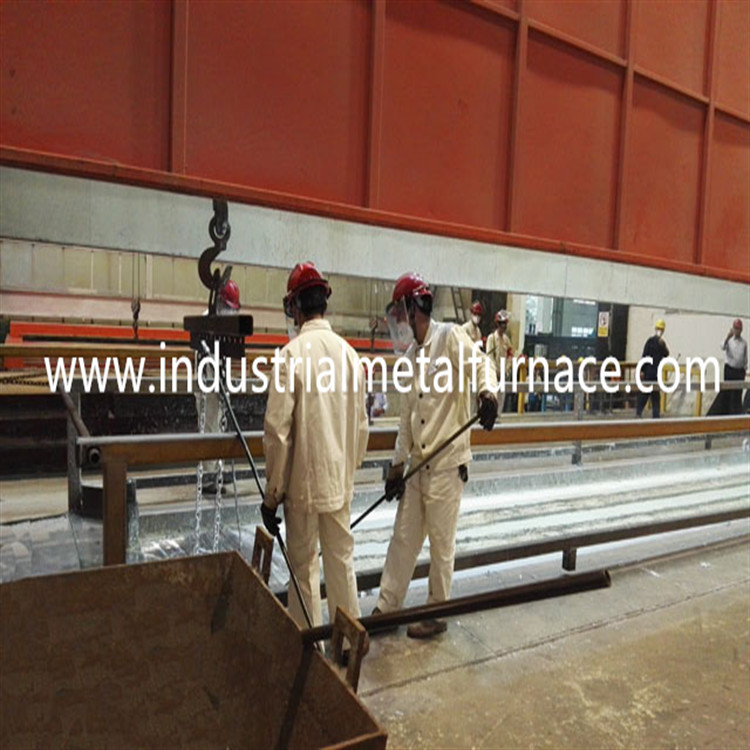

New high quality middle sized easy to operate hot DIP GALVANIZING PLANT
1.Wondery provides galvanizing plant for hot dip galvanizing of any
kind of irregular structural steel products of different shape and dimensions.
The galvanizing hoist can be designed with circular rail or liner rail.
2.The furnace is the central part of the galvanizing plant, The accurate
temperature guarantees the good coating quality, the heat efficiency can
reach 75% which is very important for cost competitiveness. Even heating
furnace can extend the lifetime of the zinc kettle.
Specially designed hoists run and stop steadily, minimize the swing distance
of the workpiece.
The emission treatment equipment as requested by the customers can
meet the requirements of international standards.
The max. Dimension of zinc kettle (m): 16 x 2.6 x 3.6
3.
| Item; | Equipment specifications; |
| Workpiece | Tools and standard parts |
| Mode of pretreatment | Shot blasting for rust removal, gantry barrel automatic pretreatment |
| Capacity of pretreatment | 200 kg per barrel, 2.5 tons per hour |
| Energy for fluxing drying | Recovered the waste heat from the flue of a zinc kettle furnace |
| Drying mode | Mesh and belt drying |
| Galvanizing mode | Automatic galvanizing, rail type, with mobile gripper |
| Galvanizing capacity | No more than 50kg/frame basket, 1.5-2.5t/hour (based on the size of workpiece) |
| Daily capacity | 30-50 tons |
| Galvanizing basket | 6 units, the size of workpiece is no more than the basket. |
| Zinc kettle size | Customized dimensions |
| Energy | Natural gas |
| Heating mode | Pulse combustion heating |
| Galvanizing temperature | 525-575℃ |
| Post-treatment | Transport with stainless mesh and chain, water cooling in stainless tank |
| Acid mist treatment | Enclosed pretreatment for acid mist collection, acid proof blower for induced air ventilation, acid mist absorb by neutralization spraying system |
| Zinc smoke treatment | Side and top capturer nearby the zinc pot. Bag filter for zinc dust, blower for induced air, deamination in spray tower |
