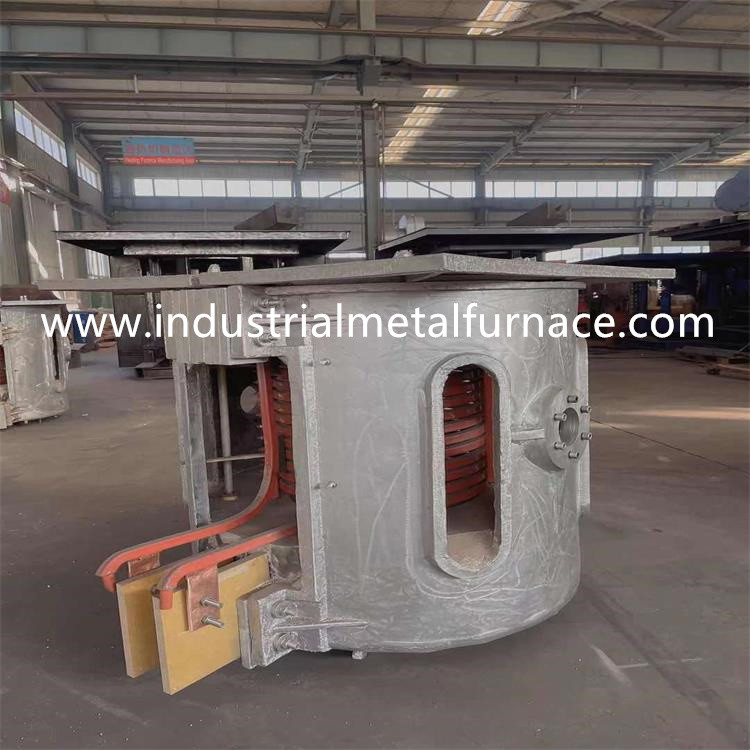

Tilting 150kg Steel Melting Industrial Induction Furnace with Aluminum Shell
1.Industrial induction furnace Features
Various capacity 0.1T -20T,fast melting speed,40-60 minutes pot
Have self-test function, real-time supervise
Have leaking alarm device,PLC control, easy to operate
The control cabinet is standard of the automobile line,easy to maintain.
The water way uses carbon-free hose , water separetors and clips use 304 stainless steel
Can meet 24 hours continuous work.
High efficiency, low cost, easy to maintain,energy saving safe and stability
2.Aluminum Shell Industrial induction furnace
High melting efficiency, good power saving effect, compact structure,strong overload capacity.
Low temperature around the Industrial induction furnace, less smoke, good working environment.
The operation process is simple and the melting operation is reliable.
Fast melting temperature rise, easy to control furnace temperature,high production efficiency
Industrial induction furnace utilization rate is high,easy to replace varieties
3. Technical Data
| Item | Units | Parameter | Remarks | |
| Medium frequency induction melting furnace | ||||
| Rated capacity | t | 0.15 | ||
| Max capacity | t | 0.18 | The maximum loading depends on the lining of the lining | |
| Rated tapping temperature | ℃ | 1580 | ||
| Melting rate | t/h | 0.1 |
Must meet the following conditions: 1,the tapping temperature ≤ 1600 ℃; 2,scrap collection rate ≥ 97%; 3,hot, continuous, feeding speed is compact; 4,insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark |
|
| Melting time | minutes/time | 55±5% | ||
| Power consumption | KWH/T | 660±5% | ||
| Working frequency | Hz | 1000 | ||
| Input frequency | Hz | 50 | ||
| Power Factor | ≥ | 0.96 | ||
| Cooling-water of furnace | Pressure of water | Mpa | 0.2-0.3 | Furnace inlet |
| Inlet water temperature | ℃ | 5~40 | ||
| Outlet water temperature | ℃ | ≤55 | ||
| Flow (furnace) | t/h | 8 | ||
| Raise of water temperature | ℃ | 10 | ||
| Reducer System | Model | RZS-231 | ||
| Power Cabinet | ||||
| Rated power | KW | 160 | 0-160 can be adjustable | |
| Input Voltage | V | 3N 380V | Mid-range | |
| electric rectificate mode | 6Pluse | |||
| Phase current | A | 260 | ||
|
Cooling water of power |
Pressure of water | Mpa | 0.1-0.12 | Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa; |
| Inlet water temperature | ℃ | 5~35 | ||
| Outlet water temperature | ℃ | ≤45 | ||
| Flow (power) | t/h | 4 | ||
| Raise of water temperature | ℃ | 10 | ||
4.Supply Scope
| No. | Item | Qty | |
| 1 | converter |
Power supply cabinet 100kw
|
1 |
| 2 | Capacitor Cabinet | 1 | |
| 3 | Furnace |
Furnace Body 100kg |
1 |
| 4 | Reducer | 1 | |
| 5 |
Crucible
|
1 | |
| 6 | Water cooling cable | 2 | |
| 7 |
Remote Control Box
|
1 | |
5.Post Sales Service
Product warranty period: 13 months from the date of shipment. The seller is responsible for repairing
the furnace or replacing the broken parts if faults are caused by manufacture defects, but damages
caused by faulty operation by the workers are to be repaired by the buyer itself or by the seller at a
certain rate. (Easy-worn parts, and natural consumption of high temperature parts are not included in the warranty.)
