1000kg Cast Iron Steel Melting Industrial Induction Furnace
1. Composition of steel melting industrial induction furnace
The steel melting industrial induction furnace is comprised of the tilting type
furnace body, the reducer, the
KGPS power cabinet, the capacitor cabinet, the cooling cables, etc.

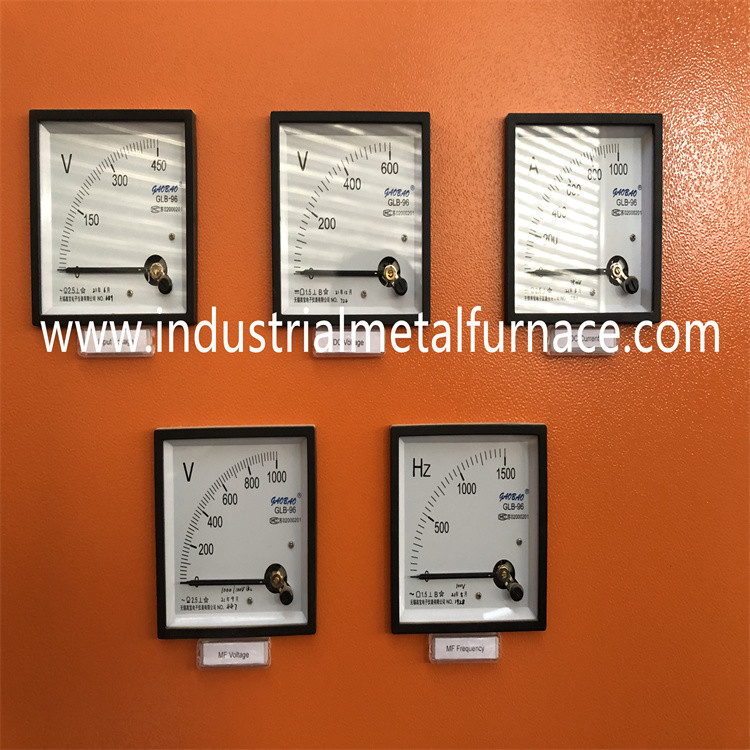

2. KGPS power supply advantages
The KGPS power supply for the steel melting industrial induction furnace
has several advantages.
2.1 The equipment cost is low.
2.2 Equipment structure is relatively simple, cost is low.
2.3 Mature technology. After more than ten years continuously improvement,
the technology of KGPS
is very mature.
2.4 Environmental friendliness.
2.5 Simple Maintenance. The maintenance is simple and cost is low.
3. Compensation Capacitor Cabinet
3.1 Reduce reactive power on distribution lines conveying , so it can reduce
energy loss on the distribution lines.
3.2 The capacitor of the steel melting industrial induction furnace can exert the
potential of the equipment,addition equipment output ,fully improve equipment utilization.
3.3 Inductive reactive compensation to improve the power factor, save energy
and reduce electricity costs .
3.4 The capacitor of the industrial induction melting furnace can increase the
voltage and improve power quality .
4. Technical Data
| Name | Units | Parameter | Remarks | |
| Medium frequency induction melting furnace | ||||
| Rated capacity | t | 1 | ||
| Max capacity | t | 1.2 | The maximum loading depends on the lining of the lining | |
| Rated tapping temperature | ℃ | 1480 | ||
| Melting rate | t/h | 0.5 |
Must meet the following conditions:
2)scrap collection rate ≥ 97%; 3)hot, continuous, feeding speed is compact; 4)insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark |
|
| Melting time | minutes/time | 60±5% | ||
| Power consumption | KWH/T | 640±5% | ||
| Working frequency | Hz | 1000 | ||
| Input frequency | Hz | 50 | ||
| Power Factor | ≥ | 0.96 | ||
| Cooling-water of steel melting industrial induction furnace | Pressure of water | Mpa | 0.2-0.3 | Furnace inlet |
| Inlet water temperature | ℃ | 5~40 | ||
| Outlet water temperature | ℃ | ≤55 | ||
| Flow (furnace) | t/h | 22 | ||
| Raise of water temperature | ℃ | 10 | ||
| Reducer System | Model | RZS-431 | ||
| Power Cabinet | ||||
| Rated power | KW | 700 | 0-700 can be adjustable | |
| Input Voltage | V | 3N 380V | Mid-range | |
| electric rectificate mode | 6Pluse | |||
| Phase current | A | 1150 | ||
|
Cooling water of power |
Pressure of water | Mpa | 0.1-0.12 | Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa; |
| Inlet water temperature | ℃ | 5~35 | ||
| Outlet water temperature | ℃ | ≤45 | ||
| Flow (power) | t/h | 20 | ||
| Raise of water temperature | ℃ | 10 | ||
5.Supply Scope
| Item | Product Name | Qty | |
| 1 | Electrical cabinets |
Power supply cabinet 700kw
|
1 |
| 2 | Capacitor Cabinet | 1 | |
| 3 | Industrial induction furnace body |
Furnace Body 1000kg |
1 |
| 4 | Reducer | 1 | |
| 5 |
Crucible (also you can use lining material) |
1 | |
| 6 | Water cooling cable | 2 | |
| 7 |
Remote Control Box
|
1 | |
