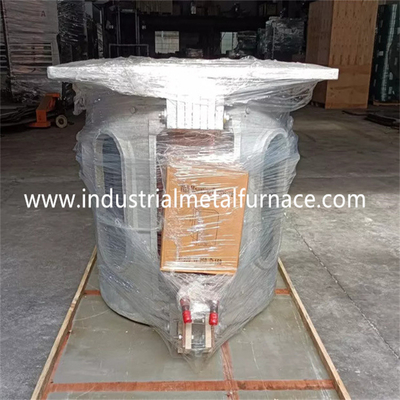

10M Continuous Copper Melting Furnace Ingot Casting Steel Crucible For Copper Production Line

10M Continuous Copper Ingot Casting Machine Production Line

1. Application

The copper ingot casting machine can meet the requirements of continuous

production process 24 hours a day.

The copper ingot casting machine can be used to produce 12kg copper ingots

with fully automatic control.

It can be used to produce copper ingots with grade T1, T2, T3, TU1, TU2.

2. Structural features of Copper Ingot Casting Machine

2.1 The copper ingot casting machine adopts the relatively mature linear cycle

mode in recent years.

The power driving part adopts hard teeth reducer and frequency conversion speed

regulation control.

The driving power only needs 4KW/380V (if there are other requirements for the

power supply, it  shall be put discussed otherwise). The speed regulation frequency

conversion motor has obvious  energy-saving effect and stable operation. The instrument

directly displays the casting machine speed per minute, which is direct and concise.

The demoulding mechanism adopts clamping and mechanical hammering.

Under normal casting conditions, the demoulding performance is stable.

2.2 The copper ingot caster machine speed adopts frequency conversion speed regulation,

high production efficiency, uniform ingot weight, high degree of automation, low labor intensity,

convenient operation and simple maintenance.

2.3 The copper ingot casting machine has the characteristics of automatic distribution of copper

liquid, which can flow the copper liquid into the mold at the most standard flow, and the weight

of the cast copper ingot is uniform. Modular design of the system, beautiful overall look, no

need for installation personnel.

2.4 The copper ingot casting machine is completely manufactured according to the current

Chinese national specifications and standards.

2.5 The whole system is safe and reliable (transmission chain with chain cover) and low

operation cost. Little environmental pollution and convenient operation.

2.6 The temperature of liquid copper is higher than that of aluminum and zinc. It is made

of high-quality heat-resistant cast steel.

2.7 Water cooling and demoulding: according to the requirements of system design, the

inner wall of copper mold can not have water, submerged external cooling (spraying or

mold bottom water cooling) is adopted.

2.8 The cooling water pump and pipeline are installed by the customer. The diameter of

the cooling water pipe is 2 inches, 50 cubic meters per hour (the customer should connect

the water pipeline to the water inlet of the ingot casting machine), and the return water pipe

is 3 inches (the customer should connect the water outlet to the pool).

2.9 The dust collecting cover of distributor, steam cover and pipeline of ingot line shall be

prepared by the user.

2.10 The three-phase and five wire 380V power supply is connected with the control

cabinet by the customer.

2.11 If the customer wants to have logo on the ingot mold, the customer should provide the

logo authorization paper and the cost of logo is to be discussed additionally.

3. Technical Parameters
