1. Highlights

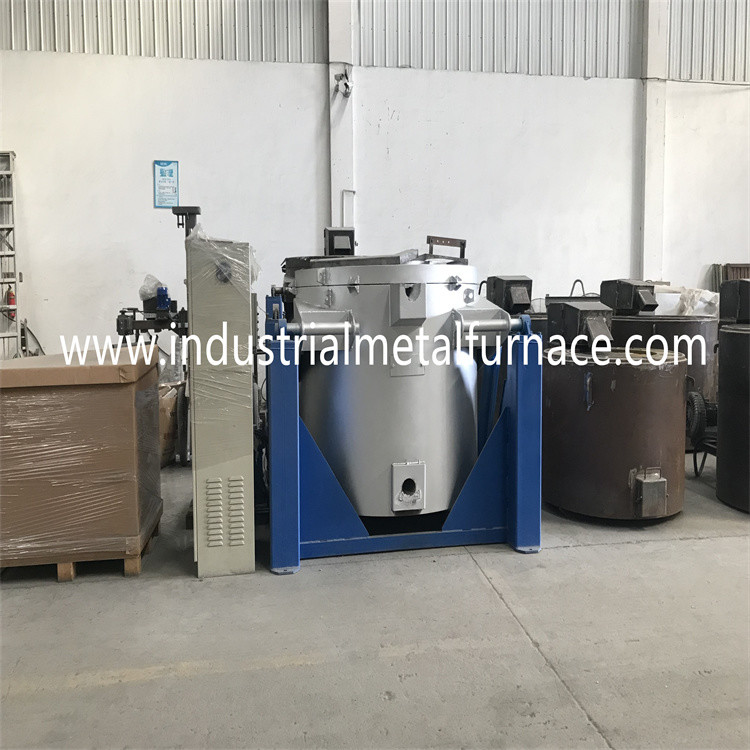

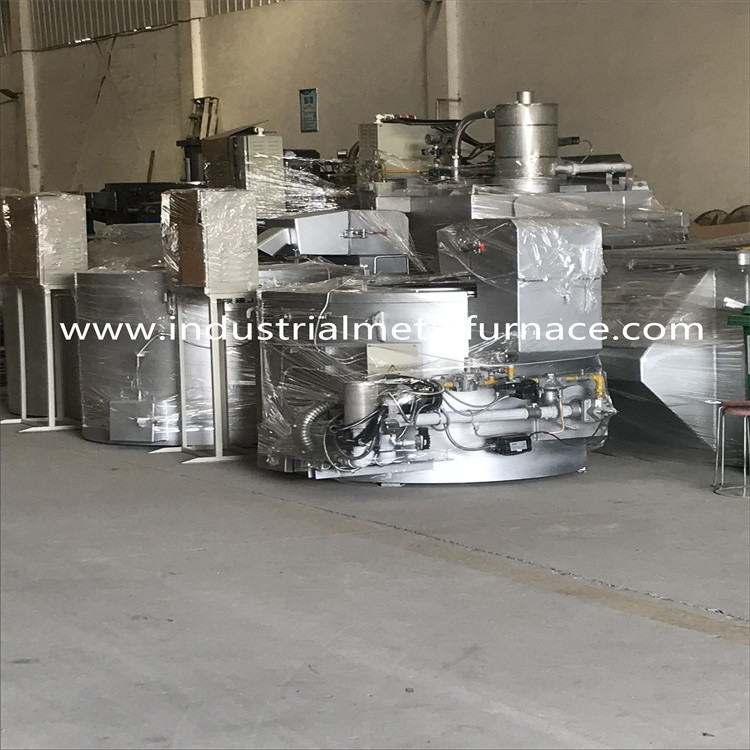

1.1 The crucible copper melting furnace is equipped with the pipe burning
system, which has the advantages of low fault rate, automatic ignition, automatic
temperature control and complete combustion.Furnace bottom is built with high
strength castable material. The max temperature of the furnace is 1400℃.
1.2 The crucible copper scrap melting furnace body is scientifically designed with low
wall surface temperature and energy-savingness.
1.3 The oil fired copper scrap furnace made by the company is mainly used
for pressure casting, gravity casting, and melting and holding before liquid die forging.
1.4 The copper melting furnace gas can be tilting or non tilting type.
2. Technical parameters
| Model | Crucible Specification |
Maximum Melting Rate (kg/h) |
||
|
Inner diameter (mm) |
Height (mm) |
Capacity (kg) |
||
| WDL-RCUY-300 | 455 | 500 | 300 | 200 |
| WDL-RCUY-500 | 455 | 600 | 500 | 350 |
| WDL-RCUY-800 | 615 | 700 | 800 | 600 |
| WDL-RCUY-1000 | 620 | 800 | 1000 | 700 |
