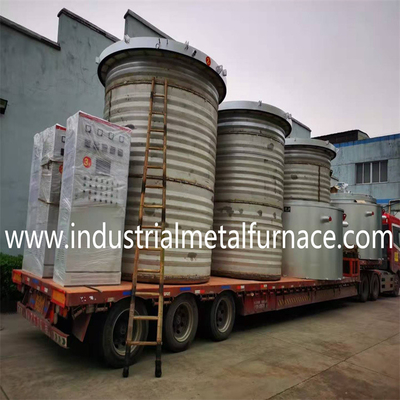

Heat Treatment Furnace for Metal Wire and Rod 950C Max Temperature 320kW Power 3 Heating Zones Energy-Saving Design
1. Equipment Purpose of electric heat treatment furnace
It is used for general softening annealing and spheroidizing heat treatment of metal wire,
wire rod and coil. It is a relatively non-oxidizing and energy-saving periodic heat treatment
equipment.This series of electric furnaces can be used for heat treatment processes such
as air atmosphere heating and high temperature annealing below 950℃. It has the advantages
of strong sealing inside the furnace, high furnace temperature uniformity, good energy saving
and convenient operation.
2. MainTechnical Parameters
| No. | Item | Technical Parameters |
| 1 | Rated heating power | 320kW +5% (1-100 % power adjustable) |
| 2 | Rated temperature | 950℃ |
| 3 | Common temperature | 720-850℃ |
| 4 | Power supply | 380V, 3-phase, 50Hz |
| 5 | Number of heating zones | 3 zones (upper, middle, lower) |
| 6 | Effective working size of furnace muffle tank | Ø 2150 × 2500mm (diameter×height) |
| 7 | Temperature uniformity | ±10℃ |
| 8 | Temperature control accuracy | ±2℃ |
| 9 | Empty furnace power loss | ≤ 10% |
| 10 | Opening of furnace body and furnace cover | Opened and closed by workshop crane |
| 11 | Heating method | Furnace side walls + furnace bottom |
| 12 | Designed load capacity of furnace bottom | Max 10t |
| 13 | Temperature rise of furnace outer wall | ≤ 45℃ |
| 14 | Furnace loading method | The workpiece is hoisted and heated in the furnace muffle tank. |
| 15 | Temperature control method | PID thyristor control Japan Shimaden intelligent instrument temperature control with over-temperature alarm and over-temperature alarm. |
| 16 | Power controller | A thyristor time proportional power regulator connected to an intelligent temperature control instrument. |
| 17 | Furnace lining type | Refractory fiber structure, furnace bottom built with heavy refractory brick |
| 18 | Furnace muffle tank seal type | high temperature silicone seal Cooling method: water cooling |
| 19 | Process end cooling system | quick cooling blower + air outlet |
3. Equipment Structure
RJ2 - 320-9 type pit type heat treatment resistance furnace is mainly composed of furnace
body, furnace cover, heating elements and fixing devices; electrical control system; furnace
temperature automatic control system, etc.
Shell: The frame ensures stability. The outer wall, made of ≥4mm steel plates (10# - 12#
steel and 6mm bottom plate), is well - welded. It's painted per standards, with high -
temperate paint for key parts.
Lining: Full - fiber structure, using high - quality refractory fibers from Shandong Luyang.
Pre - compressed fiber blocks (≥230 Kg/m³) are fixed with stainless - steel round steel.
Insulation is ≥320mm thick. The bottom has high - alumina bricks with expansion joints
and strip heating elements covered by heat - resistant plates.

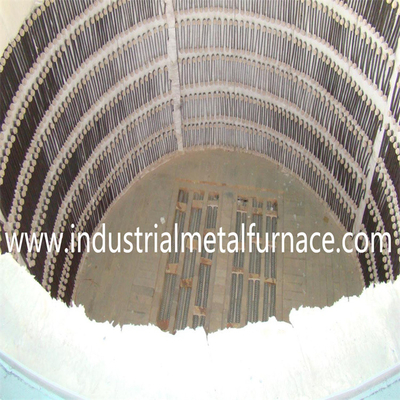

Heating Elements: Made of 0Cr25Al5 alloy, corrugated resistance belts are installed on
sides and bottom. Special molds and ceramic screws are used. There are 3 heating areas
with independent groups. Lead - out rods are φ16 0Cr25Al5, and wiring clamps are
chrome - plated. Resistance belts' neutral points zero - connected.

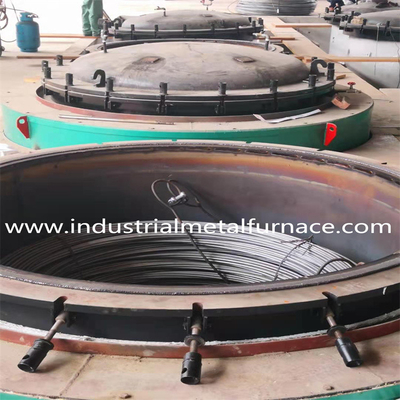

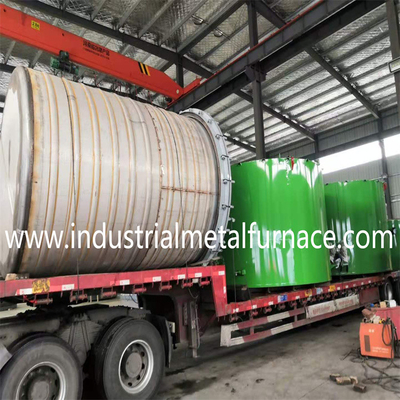

Muffle Tank: Made of 10mm 321 stainless - steel plates (10mm bottom), with a round
pressure - sealed bottom and a sealed top. The 30mm - thick carbon - steel flange has
a graphite seal ring. The 25mm A3 sheet - metal cover, with a 321 stainless - steel
insulated box, is sealed by 14 - 16 manual screws.
Protective Atmosphere Device: The furnace cover has an air inlet, an exhaust port (both
with manual valves), a pressure indicator, and a lifting ring.
4. Touch screen pages:
5. Scope of supply
| No. | Item | Q’ty | Remarks |
| 1 | Furnace body | 1 set | Including furnace bottom plate |
| 2 | 321 stainless steel furnace muffle tank | 1 set | Insulated stainless steel furnace cover |
| 3 | Heating elements | 1 set | Resistance strip |
| 4 | Temperature control system | 1 set | |
| 5 | Control cabinet | 1 set | |
| 6 | Japan Shimaden Temperature Controller | 3 sets | |
| 7 | Thyristor | 9 sets | |
| 8 | Compensation wire | 60m | |
| 9 | Thermocouple | 3 pcs | K-type 0-1100 |
| 10 | Supporting electrical | 1 set | Contactor, air switch, ammeter, voltmeter, thermal relay, switch, etc. |
6. Main Components List
| No. | Item | Origin |
| 1 | Temperature controller | Nippon Shimaden |
| 2 | Thyristor | Jiangsu Danxiang Thyristor Technology |
| 3 | Resistance Bands | Shougang, Beijing |
| 4 | Insulation Materials | Shandong Luyang Group |
| 5 | Refractory Materials | Yixing, Jiangsu |
| 6 | Steel | Tangshan Iron and Steel, Anshan Iron and Steel |
| 7 | Stainless steel plate | TISCO |
| 8 | Vacuum Pump | Shanghai |
| 9 | touchscreen | MCGS, China |
| Remarks: The supplier has the right to change the components brand to equivalent ones due to unavailability of current ones. | ||
7.Post-sales Service
The vacuum heat treatment furnace is warranted for 13 months starting from the date of
shipment. The seller is responsible for repairing the furnace or replacing the broken parts
if faults are caused by manufacture defects, but damages caused by faulty operation by
the workers are to be repaired by the buyer itself or by the seller at a certain rate of charge.
(Easy-worn parts, and natural consumption of high temperature parts are not included in
the warranty.)
