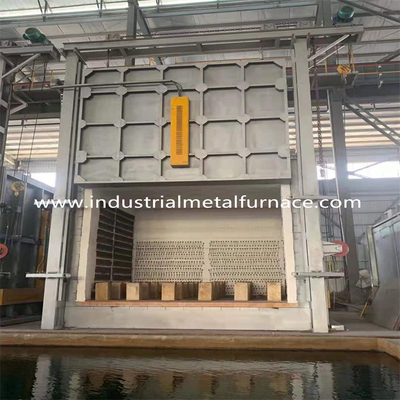

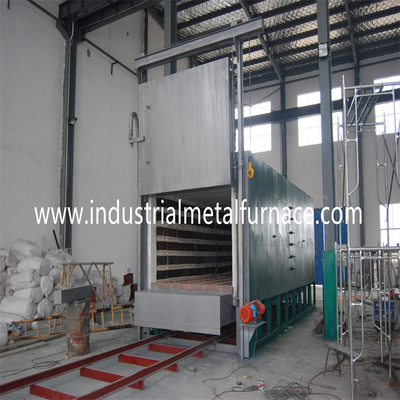

Trolley Type Car Bottom Bogie Hearth Heat Treatment Furnace
1. Highlights
1.1 The trolley type heat treatment furnace is mainly used for
annealing and tempering process of
heat treatment of different metal materials.
1.2 The lining uses the whole fiber structure with a good
heat preservation effect.
1.3 The trolley type heat treatment furnace is characterized
of PID control, low temperature fluctuation, and energy saving
1.4 The bogie hearth trolley type heat treatment furnace
adopts the resistance heating method
with a wide range of heat radiation and a long service life.
2. Technical Parameters
| Model | Rated Power (KW) | Phase | Voltage (V) |
Rated Temperature (℃) | Loading Capacity (Kg) |
Connection Method | Empty Furnace Consumption(Kw) | Empty Furnace Rising Time (h) |
Furnace Temperature Uniformity (℃) | Working Size (mm) | Weight (Kg) |
| WDL-RT-65 | 65 | 3 | 380 | 1200 | 600 | YY | ≤7.5 | ≤2.5 | ±7.5 | φ1200×600×400 | 2500 |
| WDL-RT-80 | 80 | 3 | 380 | 1200 | 1000 | YY | ≤7.5 | ≤2.5 | ±7.5 | φ1500×550×450 | 4000 |
| WDL-RT-125 | 125 | 3 | 380 | 1200 | 2500 | YY | ≤7.5 | ≤2.5 | ±7.5 | φ1800×900×600 | 6000 |
| WDL-RT-220 | 220 | 3 | 380 | 1200 | 4000 | YY | ≤12.5 | ≤3.5 | ±7.5 | φ2100×1050×750 | 11000 |
| WDL-RT-380 | 380 | 3 | 380 | 1200 | 8000 | YY | ≤17.5 | ≤3.5 | ±7.5 | φ3000×1350×950 | 14000 |
| WDL-RT-480 | 480 | 3 | 380 | 1200 | 12000 | YY | ≤19.5 | ≤4 | ±7.5 | φ3500×1350×950 | 18000 |
| WDL-RT-600 | 600 | 3 | 380 | 1200 | 18000 | YY | ≤22.5 | ≤4 | ±7.5 | φ4000×1500×950 | 22000 |
| WDL-RT-900 | 900 | 3 | 380 | 1200 | 28000 | YY | ≤30 | ≤4.5 | ±7.5 | φ6000×2500×1200 | 26000 |
