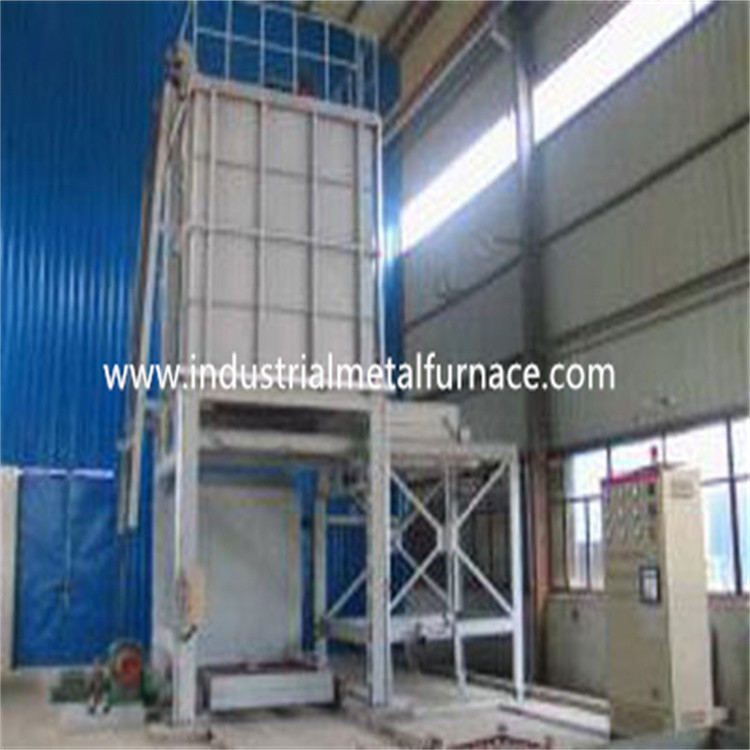

650 degree aluminum alloy quenching furnace for T6 heat treatment of aluminum wheels
1.Overview
The aluminum alloy quenching furnace for T6 heat treatment is a periodic operation resistance furnace, which is mainly used for solid solution treatment such as rapid quenching and tempering of aluminum alloy castings such as aluminum wheels, aluminum rims, etc.
After the completion of heating and insulation, the workpiece can quickly fall from the furnace to the quenching medium in the pool within 12 seconds, and the quenching treatment quality is high.
Each mechanical transmission part of the fast quenching furnace adopts interlocking control and operation.
2.Main technical data
(1) Rated power: 130kW ± 10%
(2) Rated voltage: 380V 3P frequency: 50Hz
(3) Rated temperature: 650 ℃
(4) Temperature control mode: PID control
(5) Number of heating zones: 1 zone connection method: y
(6) Uniformity of furnace temperature: ≤± 5 ℃
(7) Temperature control accuracy: ± 2 ℃
(8) Dimension of furnace working area: 1500×1500×1200mm
(9) Quenching transfer time: ≤ 12s (fast quenching furnace door open to workpiece falling into the water)
(10) Heating time of empty furnace: ≤ 2H
(11) Empty furnace loss power: ≤ 23KW
(12) Fan power: 4 kW
(13) Charge lifting motor: two speed motor(14) Furnace side outer wall temperature: ≤ 35 ℃
(15) Basket: 1 set
3. Structure introduction
The fast quenching electric resistance heat treatment furnace is composed of heating furnace, lifting mechanism, quenching mechanism, control system, etc.
