The induction coil is the device converting three phase power current into single
phase intermediate frequency current and enabling metal to produce eddy current
loss through electromagnetic field induction to achieve heating and melting and is
applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel
silver and other ferrous or nonferrous metal and alloy material, as well as heating
treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
2.Advantages of induction melting furnace:

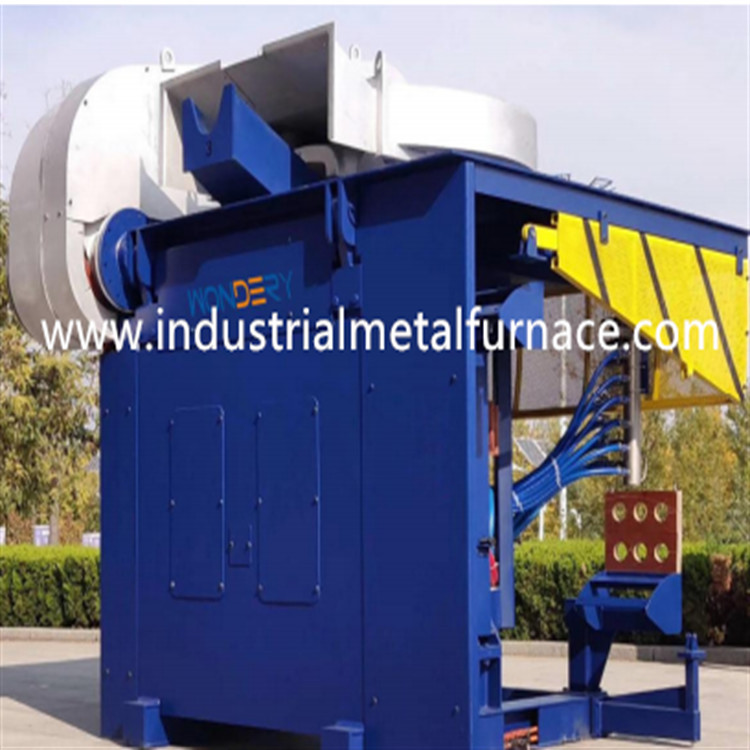

2.1 The metal foundry furnace is equipped with a strong and robust furnace body.
The large capacity steel melting furnace is designed with a steel shell.
2.2 Selenium steel made of magnetic yoke of the magnetic field lines generated
by the induction coil has played the role of shielding emission to reduce the magnetic
leakage so that it improves the efficiency and energy saving is 5%~8%.
2.3 The cover reduces heat loss and improves the equipment safety.
2.4 The metal melting furnace is equipped with a hydraulic tiling mechanism which
is strong and stable in performance.
3.Parameter of the equipment
| Model | 5 ton electric metal melting furnace |
| Power | 3000kw |
| Voltage Input | 6*950v |
| Inner dia of furnace | 980mm |
| Power factor | Power factor ≥0.96 |
| Melting time | 40-60Mins |
| Cooling method | Water cooling |
| Inlet water temperature | ≤35℃ |
| Outlet water temperature | ≤55℃ |
4. Supply
| Name | Item | Quantity (set) |
|
5 ton metal founry furnace |
Melting furnace cabinet | 1 |
| Capacitor Bank | 1 | |
| Furnace body | 1 | |
| Unidirection Magnetic Yoke | 1 | |
| Crucible mold | 1 | |
| Hydraulic tilting system | 1 |
