15KW 3KG Induction Industrial Steel Melting Furnace Medium Frequency
1. Main Features

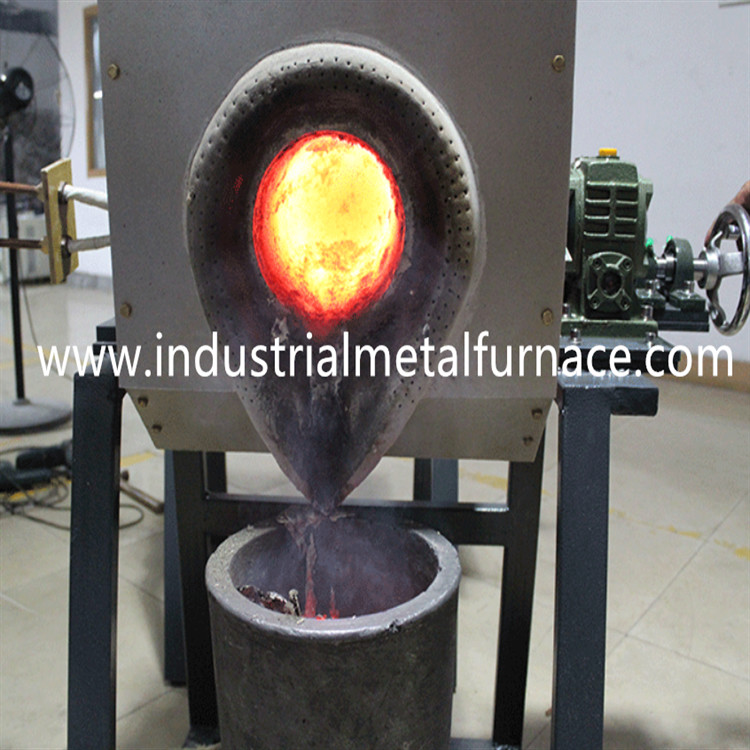

1.1 The tilting type induction steel melting furnace has a small and compact structure. It is very easy in
installation and operation.
1.2 The industrial metal induction steel melting furnace has a fast melting speed and saves energy consumption.
1.3 We have full range industrial metal steel melting furnaces and induction heat treatment furnaces.
The frequency can be low frequency, medium frequency or high frequency.
1.4 The induction industrial metal steel melting furnace adopts IGBT power device and unique frequency
conversion technology to operate stably and provide higher reliability and durability.
1.5 The industrial metal steel melting furnace has alarm function and fault detection function, such as fault
state protection and display including overcurrent, overvoltage and water shortage, etc.
1.6 The steel melting furnace with power 15-160KW is our mature product. The lead time is 5 working days.
2.Power Selection Table
| Model/specification | WDL-MF-15KW |
| Working power supply | 3P 380V 50 / 60Hz |
| Operating voltage range | 340-430V |
| output power | 15KW |
| oscillation frequency | 2-20KHZ |
| Output current | 1-35A |
| time setting | 0.1-99.9S |
| Cooling water volume | 0.08-0.16Mpa 9L/min |
| Water temperature protection point | 40℃ |
| Power cabinet/ capacitor cabinet weight | 37.5/32.5kg |
| Overall dimension(mm) |
Power cabinet: 550 * 280 * 540mm Capacitor cabinet: 580 * 240 * 520mm |
| Furnace type | Medium frequency |
| Water pump | 1 set supplied |
We also have medium and large size induction metal melting furnace. The max capacity of the
furnace reaches 20Ton or more. We provide customzied service.
3. Composition of Furnace
The medium frequency induction steel melting furnace is composed of the power supply cabinet,
the steel melting furnace body, the capacitor cabinet, the foot switch, the connection wires, the
flexible connection cables, the protective cap and the protective gloves. The package is standard plywood case.
