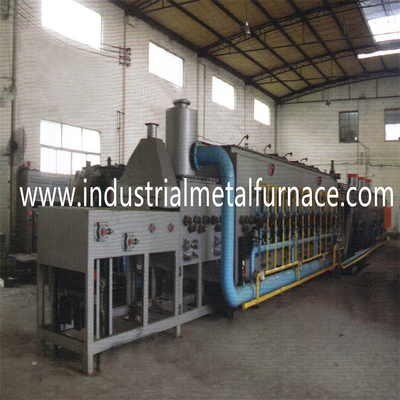

300KG PER HOUR Forging Parts Mesh Belt Furnace
for Isothermal Normalizing Treatment
1. Mesh Belt Heat Treatment Furnace
The mesh belt furnace normalizing furnace is the key part of the line.Mesh belt furnace for heat treatment is comprised
of mesh belt driving device, heat preservation material, heating device, and
temperature control devices. The normalizing continuous mesh belt furnace is comprised
of the preheating area and furnace shell.
2. Equipment Specification
2.1 Cooling Machine
The cooling machine is comprised of the conveyor, the cooling circulation fan,
heat preservation body and driving device.
2.2 Isothermal Normalizing Furnace
The isothermal normalizing mesh belt furnace for sale adopts the upper and lower
heating design via the heat radiation tubes. Each zone is set with one big
power hot air circulation fan to reach the temperature uniformity.
2.3 Electrical control cabinet
The whole production process is managed by the computer and monitored by PLC system.
The control system controls the temperature, driving system, liquid level, etc.
The system has safety interlink and fault audible and visual alarm.
3.Components List
| No | Item | Q’ty | Origin | Notes | |||
| Heating Furnace | |||||||
| 1 | Furnace shell | Steel structure Q235 | All | Factory make | |||
| Heat resistant steel | All | Japan | SUS310S | ||||
| 2 | Lining | Anchoring parts SUS310S | All | Japan | |||
| Cera blanket 1260 | All | Isolite | |||||
| Cera blanket 1400 | All | Isolite | |||||
| High-alumina cera blanket 1260 | All | Isolite | |||||
| Heat preservation board 1000 | All | Isolite | |||||
| High-alumina bricks B5 | All | Isolite | |||||
| Adhesive 1500 | All | Japan | |||||
| 3 |
Heating |
Electrical heating | Outer pipe ￠120mm | 36 sets | Japan | ||
| Heating element | 36 sets | Shanghai | |||||
| Insulator | 36 sets | Yixing | |||||
|
Thermal couple WRN430-K 1000 |
4 pieces | Dazheng, Chongqing | |||||
| transformer 380V/42V | 4 sets | SHANGHAI | |||||
|
4
|
Driving Device |
Heating chamber support roller ￠50/89 | 27 pieces | Taihu, Wuxi | SUS310 | ||
| Preheating chamber support roller ￠50/89 | 8 pieces | Taihu, Wuxi | SUS04 | ||||
| bearing UCL207 | All | NSK | |||||
| Chain and sprocket wheel P=19.05mm | All | Suzhou | |||||
| Reducer ASX70-120-0.75kW | 1 set | Chengta, Taiwan | |||||
| Mesh belt 600*18000* 2/2.5 | 1 piece | Shuangxing | SUS314 | ||||
| Proximity switch | 1 piece | Omron | |||||
| Cooling Machine | |||||||
| 1 | Steel structure Q235 | All | Factory make | ||||
| 2 | Mesh belt 800*8500*2.5/3.5mm | 1 piece | Shuangxing | SUS304 | |||
| 3 | Cooling fan 0.75kW | 4 sets | Yingda, Shanghai | ||||
| 4 | reducer ASX-60-100-0.75kW | 1 set | Chengta, Taiwan | ||||
| 5 | Chain and sprocket wheel P=76.2mm | All | Suzhou | SUS304 | |||
| 6 | Thermal couple K type | 1 piece | Dazheng, Chongqing | ||||
| 7 | Overload protector | 1 set | Imported technology | ||||
| 8 | Driving detection device (proximity switch) | 1 piece | Omron | ||||
| Isothermal | |||||||
| 1 | Steel structure Q235 | All | Factory make | ||||
| 2 | Air guide hood | All | Factory make | SUS304 | |||
| 3 | Heat preservation material | Heat preservation brick | All | He’nan | |||
| Fiber board | All | Shandong | |||||
| 5 | Heating system | Heat radiation tube |
Outer pipe ￠76mm |
36 sets | Shanghai | ||
| Heating element | 36 sets | Shanghai | |||||
| Insulator | 36 sets | Yixing | |||||
| Thermal couple WRN430-K-800 | 3 pieces | Dazheng, Chongqing | |||||
| 6 | Circulation Fan | Motor 1.5kW | 3 sets | Teco | |||
| Vanes connected with shaft | 3 sets | Self make | SUS304 | ||||
| Bearing UCFY211/209 | 6 sets | NSK,Japan | |||||
|
7
|
Driving system | Support roller,￠50mm | 24 pieces | Wuxi | SUS304 | ||
| Bearing, UCF207 | 48 sets | Kaifeng | |||||
| Chain and sprocket wheel P=19.05mm | All | Suzhou | |||||
| Reducer ASX-70-120-0.75kW | 1 set | Chengta, Taiwan | |||||
| Mesh belt 800*18000*1.6/2.5 | 1 piece | Shuangxing | SUS304 | ||||
| 8 | Driving detection device (proximity switch) | 1 piece | Omron | ||||
| Electrical Components | |||||||
| 1 | Digital temperature controller (heating furnace) | 4 sets | Honeywell | ||||
| 2 | Digital temperature controller (conveyor) | 1 set | Honeywell | ||||
| 3 | Digital temperature controller (isothermal normalizing furnace) | 3 sets | Honeywell | ||||
| 4 | CM13310 series | All | Siemens | ||||
| 5 | 3TF series AC 220V | 1 set | Siemens | ||||
| 6 | 3TB series AC 220V | 1 set | Siemens | ||||
| 7 | Heat relay 3UA5040 series | 1 set | Siemens | ||||
| 8 | Circuit breaker C65AD series | 1 set | Siemens | ||||
| 9 | Intermediate relay MY2N AC 220V | 1 set | Siemens | ||||
| 10 | AC ammeter 6L2-A | All sets | Dongfeng, Suzhou | ||||
| 11 | AC voltmeter 6L2-V | All | Dongfeng, Suzhou | ||||
| 12 | Indication light | All | Schneider | ||||
| 13 | Rotary switch | All | Schneider | ||||
| 14 | Buttons | All | Schneider | ||||
| 15 | power controller | 4 sets | Ouyake | Heating furnace | |||
| 16 | Power controller | 3 sets | Isothermal normalizing furnace | ||||
| 17 | Inverter FRN1.5G11S-4 0.75kW | 2 sets | Mitsubishi, Japan | Heating furnace, isothermal normalizing furnace | |||
| 18 | Inverter FRN1.5G11S-4 1.5kW | 2 sets | Mitsubishi, Japan | Cooling machine | |||
| 19 | PLC | 1 set | Mitsubishi, Japan | ||||
| 20 | Touch screen 15 inch | 1 set | Kunluntongtai | ||||
| 21 | Proximity switch E2E-X10ME1 | 3 pieces | OMRON | ||||
