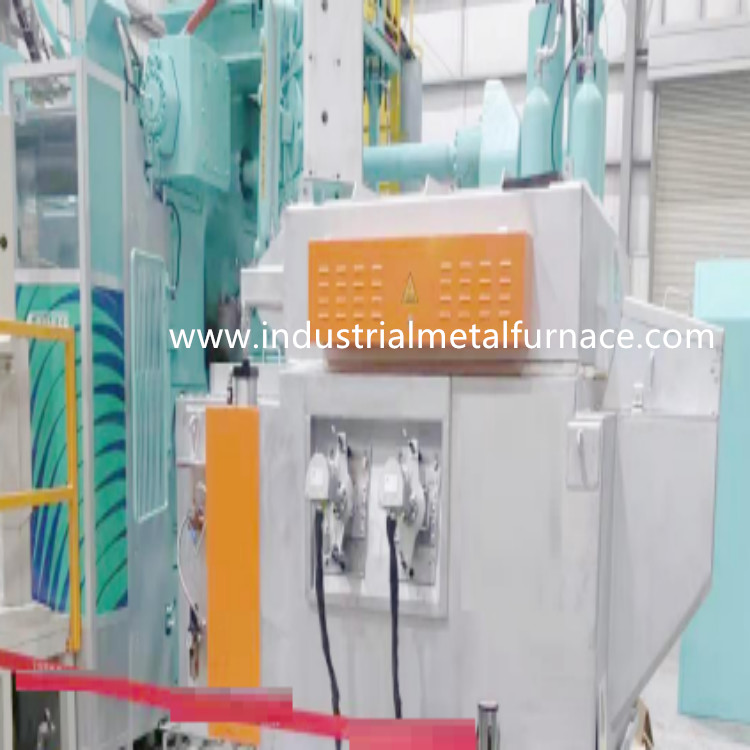

2000KGS Aluminum Liquid Industrial Immersion Electric Aluminum holding Furnace
1. Product Description
Immersion aluminum alloy electric aluminum holding furnace is mainly suitable for the insulation
of non-ferrous metal solution. It has high requirements for die-casting process and low equipment
energy consumption.At present, die casting factories are looking for breakthroughs in how to
improve production efficiency, optimize energy consumption to the greatest extent, and how to
implement continuous transformation.
Direct internal heating of molten aluminum has high thermal efficiency, no oxide, high temperature
control accuracy of molten aluminum, and the energy consumption is more than 60% lower than
that of ordinary radiant heating furnace
Heating elements imported from Europe
The industrial immersion aluminum holding furnace has been upgraded on the basis of the previous
generation of aluminum holding furnace, the structure has been optimized, and a new generation of
holding furnace has been launched after it is stable in practical use.
2.Techinical Parameters
| Model | WDL-CDJ-2000 |
| Quantity (set) | 1 |
| Capacity (kg) | 2000 |
| Rated temperature of molten aluminum (℃) | 730 |
| Rated power (kw) | 28 |
| Heating capacity (℃ / h) | 40 |
| Energy consumption | Less than 8kw / h |
| Oxygen content in furnace | Less than 2% |
3.Advantages of new generation immersion aluminum holding furnace:
3.1 No burning loss of molten aluminum to ensure the high quality of molten aluminum
3.2Ultra low energy consumption cost, heating source close to 100% thermal efficiency
3.3 Precise temperature control accuracy (± 2 ℃)
3.4 Intermittent boiler shutdown can be realized and the operation is convenient
3.5 It is more convenient to replace the heating pipe, which can be operated after on-site basic training
3.6 Longer service life of furnace body

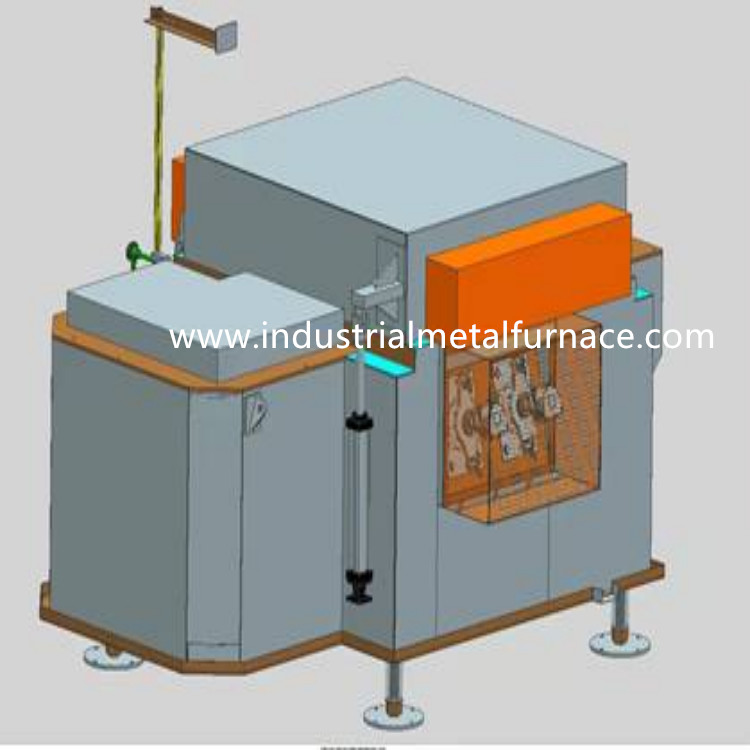

4.steel structure
The shell of the furnace body is welded and cast by steel plate and section steel.The whole furnace
has lifting function, which is easy to match with the equipment.
Material specification details of furnace body
| name | Material Science | Specifications | brand | other |
| Furnace shell | 235steel plate | 6mm | Angang | |
| Furnace body cover plate | 235steel plate | 14mm | Angang | |
| Furnace insulation layer | 1000℃ calcium silicate board | 510*300*50mm | Seeking truth | |
| Furnace insulation layer | 1200℃ ceramic fiber board | 1000*600*50mm | Isolet, Japan | |
| Furnace insulation layer | 1200℃ nano thermal insulation board | 1000*600*25mm | Sweden | Unithermal |
| Liquid aluminum impervious layer | Lightweight castable | 80ACX | United minerals | |
| Furnace part | High silicon nitride brick | SI230*115 | domestic | |
| Anchor | stainless steel | 310 | domestic | |
| Furnace cover insulation layer | 1000℃ calcium silicate board | 510*300*50mm | Seeking truth | |
| Furnace cover insulation layer | 1200Nano insulation board | 1000*600*25mm | Sweden | Unithermal |
| Furnace cover insulation layer | 1200℃ ceramic fiber board | 1000*600*50mm | Isolite, Japan | |
| Furnace cover refractory layer | Castable | AR 65 | United minerals | |
| Shell paint | High temperature silver powder | 14# | Shanghai Kailin |
