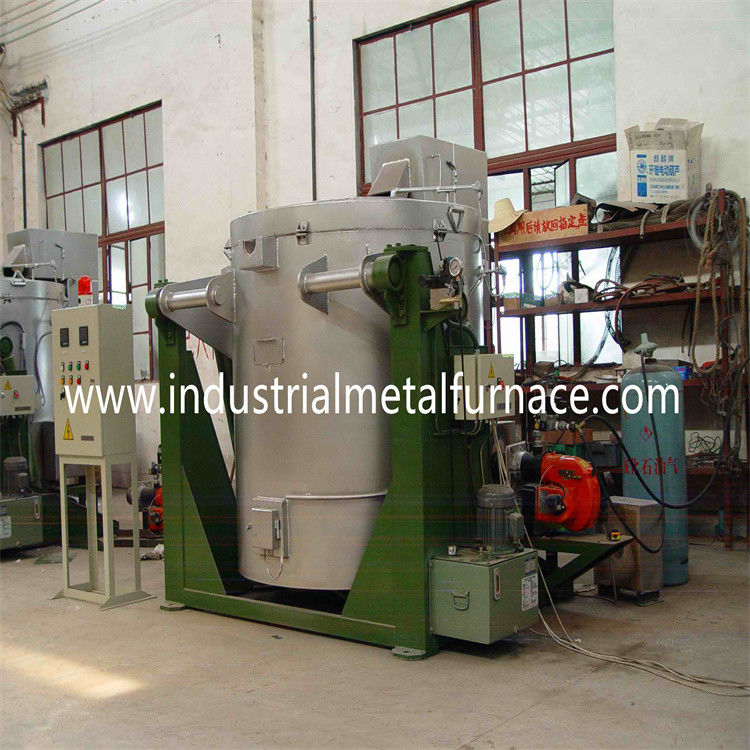

1. Features of Oil Fired Crucible Melting Furnace
1.1 The oil fired aluminum melting furnace adopts the advanced
Riello burner with PID control, which significantly reduces energy
consumption. The temperature control accuracy reaches ±5℃.
1.2The oil fired aluminum melting furnace is equipped with one
thermal couple protected by the silicon nitride outer pipe,
and this thermal couple could directly measure the aluminum liquid.
1.3 The oil fired aluminum melting furnace adopts European brand
graphite crucible, which has a good thermal conductivity,
a long life, and no iron hyperplasia.
1.4 The oil fired aluminum melting furnace lining is composed of the
casting material and the ceramic fiber module material,
which has the characteristics of good heat preservation effect, small
heat storage and fast heating rate. The wall
temperature rise is ≤ 40℃.
1.5The oil fired aluminum melting furnace is equipped with liquid
leak alarm, over-temperature alarm and other
functions to ensure the safety of equipment and operation.
1.6 The metal liquid is automatically poured out, easy, safe and reliable.
2. Technical Parameters
| Model | Crucible Capacity (kg) | Melting Capacity (kg/h) |
Overall Dimension (mm) L * W* H |
| WDL-RGY-350 | 350 | 150 | 1500*1600*1750 |
| WDL-RGY-500 | 500 | 200 | 1670*1700*1800 |
| WDL-RGY-800 | 800 | 300 | 1800*1800*1900 |
| WDL-RGY-1000 | 1000 | 400 | 1800*2100*2400 |
3. Configuration of Crucible Melting Furnace
| No. | Item | Q’ty | Remarks |
| 1 | Crucible Melting Furnace Body | 1 set | |
| 2 | Oil type riello burner | 1 set | |
| 3 | Control Cabinet | 1 set | |
| 4 | Hydraulic Tilting Mechanism | 1 set | |
| 5 | Graphite Crucible | 1 pc | Vesuvius brand |
