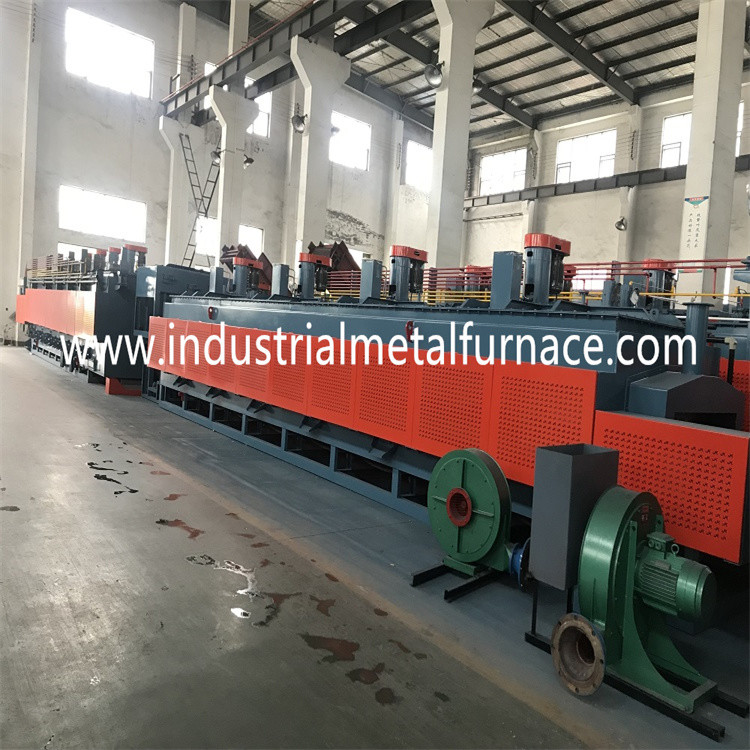

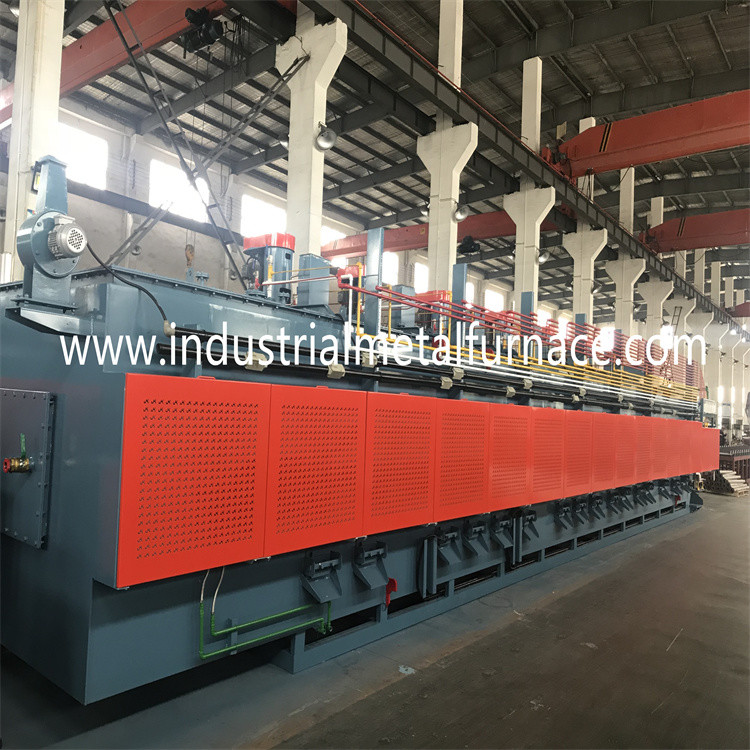

Roller Support Mesh Belt Type Resistance Furnace Heat Treatment Furnace
1. Applications of mesh belt furnace
The mesh belt heat treatment furnace is widely applicable to the hardening, carburizing and
carbonitriding etc. of the mechanical parts of automobile fittings, fastening, chains, bearings
and tools etc. and realize continuous heat-treatment processes of automatic loading rinsing,
heating,quenching, rinsing, tempering, dyeing, drying, and oil-covering etc. The mesh belt
furnace is controlled by computer.
2. Heat Treatment Furnace’s Features
Easy operating, higher efficiency, energy saving, stable product quality, advanced control.
3. Main Specifications and Parameters
|
Model |
Rated Power (Kw) |
Rated temperature (degree celcius) |
Working size (mm) (mm) |
Productivity (kg/h) |
| WDL-RCW-1A | 100 | 920 | 400*400*100 | 160~200 |
| WDL-RCW-2A | 110 | 920 | 400*4700*100 | 180~250 |
| WDL-RCWA-2A | 120 | 920 | 500*4000*100 | 180~250 |
| WDL-RCWA-2B | 130 | 920 | 500*4700*100 | 250~300 |
| WDL-RCWA-3 | 160 | 920 | 600*4700*100 | 300~350 |
| WDL-RCWA-3A | 160 | 920 | 500*6000*100 | 300~350 |
| WDL-RCWA-4 | 180 | 920 | 600*6000*100 | 350~420 |
| WDL-RCWA-4A | 180 | 920 | 800*4700*100 | 450~520 |
| WDL-RCWA-5 | 220 | 920 | 800*6000*100 | 450~520 |
| WDL-RCWA-6 | 300 | 920 | 800*7600*100 | 550~720 |
| WDL-RCWA-7 | 380 | 920 | 1000*7600*100 | 880~1000 |
