110KW 50KG Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type
1. Application

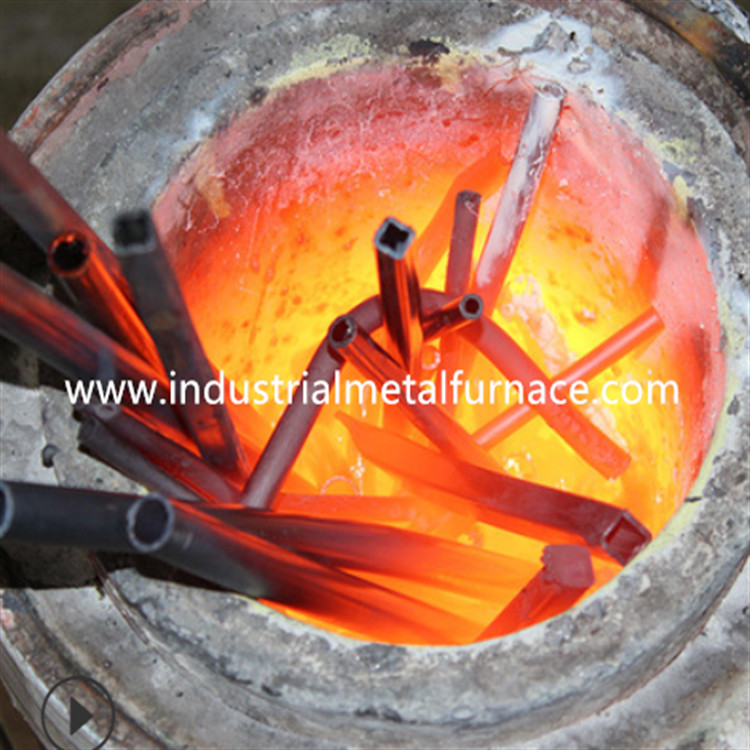

The electric induction melting furnace can be used to melt cast iron or steel with a max temperature

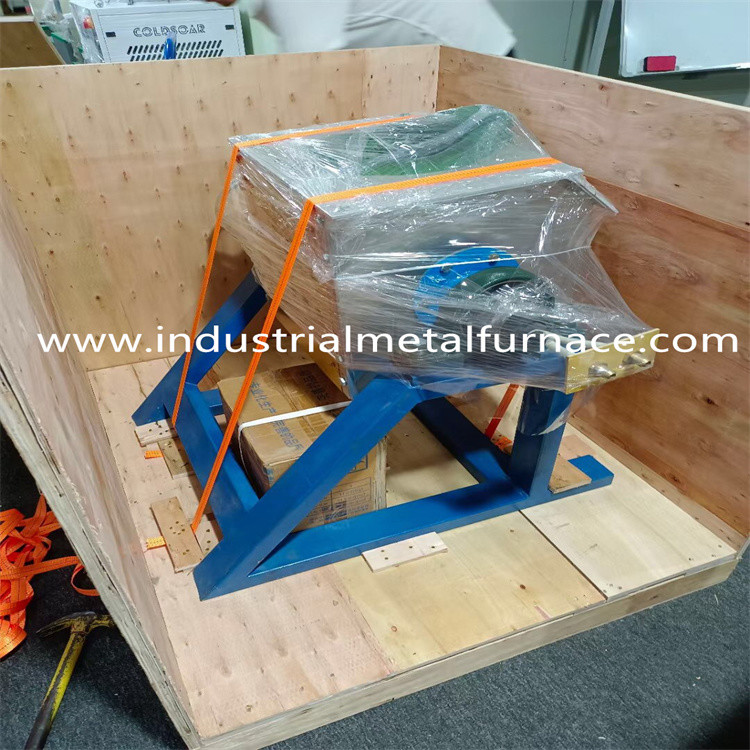

of 1900 degree celcius. The medium inducton melting furnace is of tilting type. The furnace takes a
small size, and is very convenient in operation. The electric metal melting furnace has alarm function
and fault detection function, such as fault state protection and display including overcurrent, overvoltage
and water shortage, etc.
2. Supply Scope
|
Heating power source, 1 set; Foot switch, 1 pc; Connection wire 2pcs; single wire 1 pc; Electric induction melting furnace body 1set; flexible connection cable 2pcs; Protective cap 1 set; protective gloves 1 pair; User manual 1 copy; |
3. Technical Parameters of Induction Melting Furnace
| Working Power | 110KW |
| Input voltage range | 70V-550V |
| Output oscillation frequency | 1-20KHZ |
| Output current | 30-200A |
| Weight |
Main machine: 80kg; Control cabinet: 65kg |
| Dimension |
Furnace: 1050*790*1200mm(L*W*H); Power supply: 820*420*890mm(L*W*H); Control cabinet: 550*400*510mm (L*W*H) |
| Capacity | 50KG cast iron |
| Cooling type | Water cooling |
| Cooling water requirement |
≥0.3Mpa ≥20L/min |
4. Features
4.1 The main power devices of the electric induction melting furnace are all German Siemens brands,
and the main electronic components are imported products (Motorola (diode), NEC (triode), ST
(three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably and have higher
reliability and durability.
4.2 The electric induction metal melting furnace adopts IGBT power device and unique frequency
conversion technology to operate stably and provide higher reliability and durability. It has the
function of constant current and constant power control, which greatly optimizes the metal heating
process, realizes efficient and fast heating, and gives full play to the advantages of the product.
Under the same conditions, it has twice the power saving than the traditional SCR medium frequency.
4.3 The metal induction melting furnace can be used to melt gold, copper, aluminum, steel, zinc,
lead, stainless steel, etc.
4.4 The small metal induction melting furnace requires a small floor area, a light weight
and can be moved easily. The furnace can work continuously.
