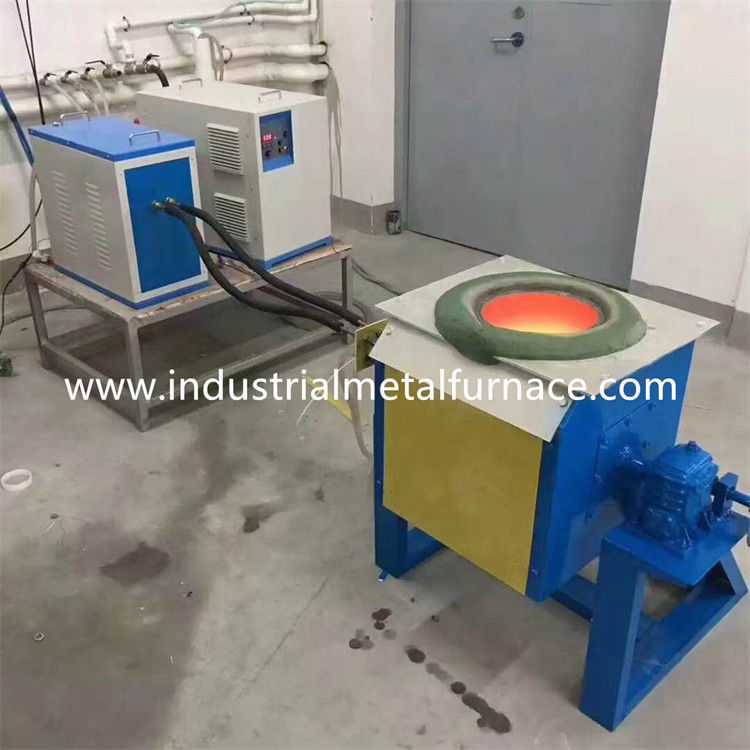

Medium Frequency Metal Induction Melting Furnaces for Gold SS Copper Aluminum
1. Application of metal melting furnaces
The induction melting furnace is divided into high frequency, medium frequency and
low frequency type. The induction metal melting furnace is a fast tilting type induction
furnace for melting various metals such as steel, iron, copper, silver, aluminum, zinc,
lead, etc. It has the advantages of small size required, safety, intelligent temperature
control, and fast melting efficiency.
2. Technical Parameters of Induction Melting Furnace
| Model/specification | Maximum input power | Steel/stainless steel | Brass/gold/ Silver | Aluminum/aluminum alloy | Frequency |
|
WDL-MF-15KW
|
15KW | 3KG | 10KG | 3KG | 2-20Khz |
|
WDL-MF-25KW
|
25KW | 5KG | 20KG | 5KG | 2-20Khz |
|
WDL-MF-35KW
|
35KW | 10KG | 30KG | 10KG | 2-20Khz |
|
WDL-MF-45KW
|
45KG | 18KG | 50KG | 18KG | 2-20Khz |
|
WDL-MF-70K
|
70KW | 25KG | 100KG | 25KG | 2-20Khz |
|
WDL-MF-90KW
|
90KW | 40KW | 120KW | 40KW | 2-20Khz |
|
WDL-M--110KW
|
110KW | 50KG | 150KG | 50KG | 2-20Khz |
|
WDL-MF-160KW
|
160KW | 100KG | 250KG | 100KG | 2-20Khz |
3.Supply Scope of Induction Melting Furnace
|
Heating power source, 1 set; Foot switch, 1 pc; Connection wire 2pcs; single wire 1 pc; Induction melting furnace body 1set; flexible connection cable 2pcs; Protective cap 1 set; protective gloves 1 pair; User manual 1 copy; |
4.Company Overview
Our company supplies various induction furnaces, and the capacity of the furnace varies from
1kg to 15ton based on different metals. We have small induction melting furnace, mini induction
melitng industrial furnaces, aluminum shell medium frequency induction melting furnace, and
steel shell metal foundry furnaces.
