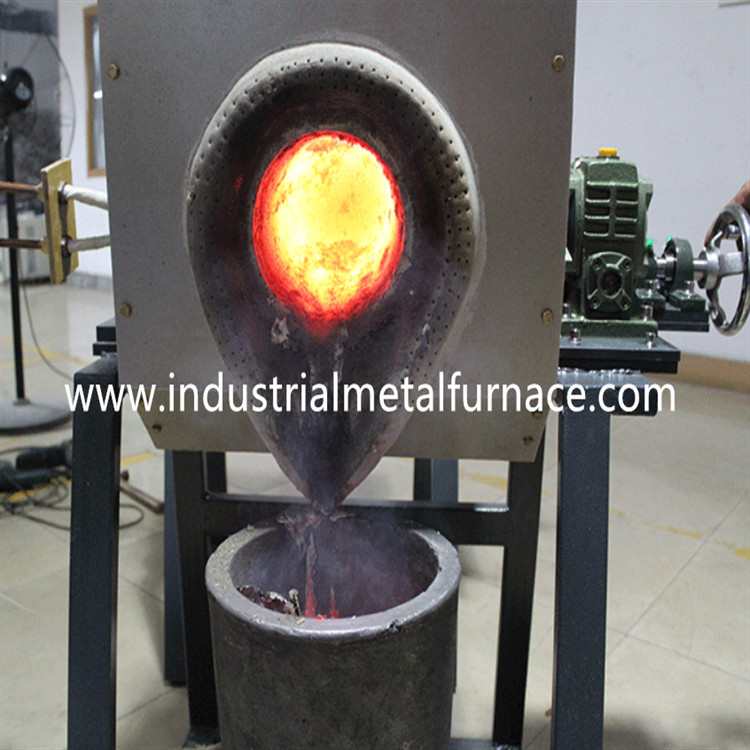

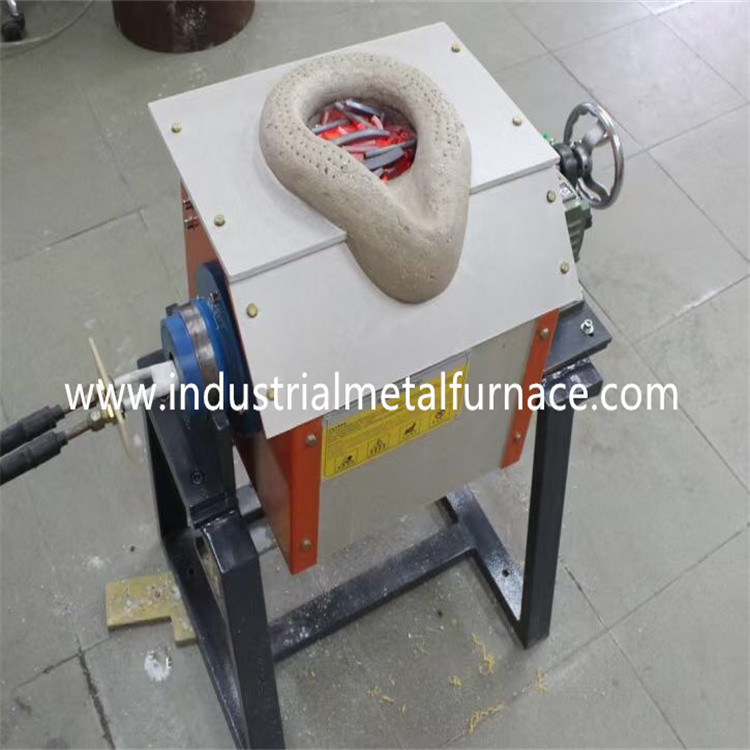

15KW Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type
1. Technical Parameters of Induction Melting Furnace
| Working Power | 15KW |
| Input voltage range | 70V-550V |
| Output oscillation frequency | 1-20KHZ |
| Output current | 3-22A |
| Weight |
Main machine: 30kg; Control cabinet: 25kg |
| Dimension |
Furnace: 800*550*750mm (L*W*H); Power supply: 530*290*520mm (L*W*H); Control cabinet: 500*230*460mm (L*W*H)； |
| Capacity | 3KG cast iron |
| Cooling type | Water cooling |
| Cooling water requirement |
≥0.2Mpa ≥6L/min |
2. Supply Scope
The induction melting furnace is comprised of the following parts: 1 set of protective cap, 1 set
of protective gloves, 1 set of metal melting furnace body,2 pcs of flexible connection cable,
2 pcs of connection wires, 1 pc of single wire, 1pc of foot switch, and 1 set of mini induction
melting furnace heating power source.
3.Main Featurs
The main power devices of the induction melting furnace are all German Siemens brands,
and the main electronic components are imported products (Motorola (diode), NEC (triode),
ST (three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably
and have higher reliability and durability.
3.2 The induction metal melting furnace adopts IGBT power device and unique frequency
conversion technology to operate stably and provide higher reliability and durability.
It has the function of constant current and constant power control, which greatly
optimizes the metal heating process, realizes efficient and fast heating, and gives
full play to the advantages of the product. Under the same conditions, it has twice
the power saving than the traditional SCR medium frequency. With 100% load design,
it can work continuously for 24 hours and improve heating quality.
