25KG Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type
1. What is a steel melting indusrial induction melting furnace?

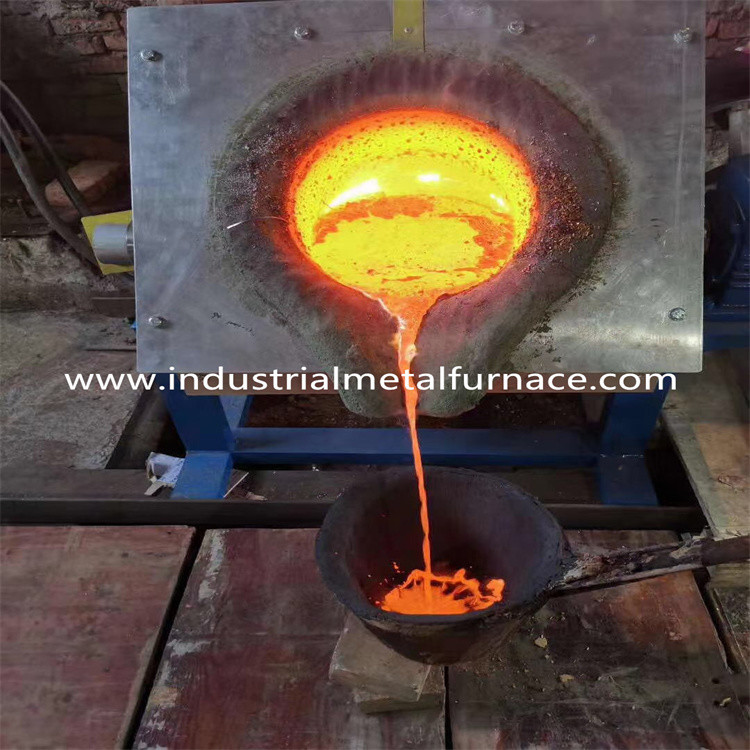

The steel melting industrail induction melting furnace is a tilting type furnace.
The furnace is comprised of the tilting type furnace body,

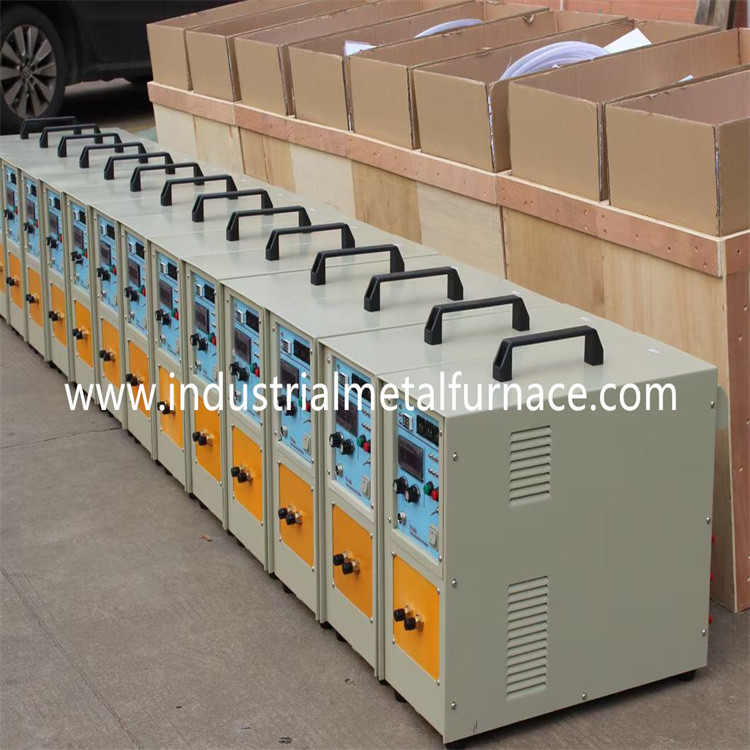

the power supply cabinet, the capacitor cabinet, cables, etc.
This small induction melting furnace is equiped with IGBT power supply.
The steel melting induction melting furnace has a fast melting speed and a compact speed.
2. Technical Parameters of Induction Melting Furnace
| Working Power | 70KW |
| Input voltage range | 340V-430V |
| Output oscillation frequency | 1-20KHZ |
| Max input current | 105A |
| Output current | 400-3500A |
| Weight |
Main machine: 80kg; Control cabinet: 60kg |
| Dimension |
Main machine: 725*600*900mm(L*W*H); Control cabinet: 670*420*500mm (L*W*H) |
| Capacity | 25KG cast iron |
| Cooling type | Water cooling |
| Cooling water requirement |
0.8~0.16Mpa 9L/min |
3. Main Features
3.1 The induction metal melting furnace adopts IGBT power device and unique frequency
conversion technology to operatestably and provide higher reliability and durability.
It has the function of constant current and constant power control, which
greatly optimizes the metal heating process, realizes efficient and fast heating,
and gives full play to the advantages of product. Under the same conditions,
it has twice the power saving than the traditional SCR medium frequency. With
100% load design, it can work continuously for 24 hours and improve heating quality.
3.2 The main power devices of the induction melting furnace are all German Siemens brands,
and the main electronic components are imported products (Motorola (diode), NEC (triode),
ST (three terminal voltage regulator), FAIRCHILD, ON etc.,
which make them work stably and have higher reliability and durability.
3.3 The metal melting furnace has alarm function and fault detection function, such as fault state
protection and display including overcurrent, overvoltage and water shortage, etc.
3.4 The medium frequency induction melitng furnace is characterized of adjustable power, easy operation,
stable quality and energy-savingness.
