350KG PER HOUR Support Roller Electrical Resistance
Mesh Belt Furnace Heat Treatment For Self Tapping Screws
1.Application of Mesh Belt Furnace
1.1 product to be treated: self-tapping screw;
1.2 process carried out in mesh belt furnace: carburizing,
carbo-nitriding, and tempering,
case depth: ≤0.15mm;
1.3 productivity of mesh belt furnace: around 350kg/h carburizing;
2. Furnace Size
According to the buyer’s requirement, we recommend our customer
to choose 600*8000mm
support roller type electrical mesh belt heat treatment furnace.
3. Mesh Belt Basic Parameters
|
3.1 Total loading power: 500kw; normal power: 350kw; power supply 3phase, 380v, 50Hz; |
4. Equipment General Introduction and Main Features

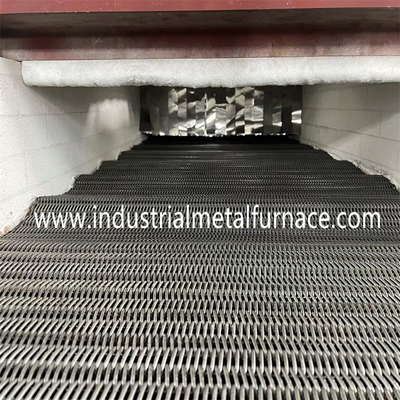

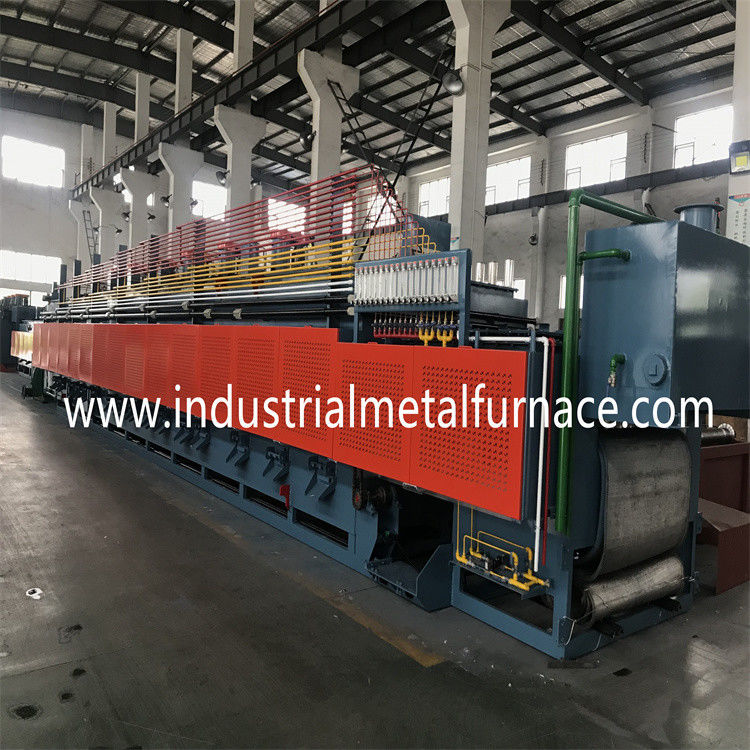

General Introduction:The electrical mesh belt heat treatment furnace combines the advanced
technologies from Taiwan. Its key parts are imported from overseas.
The mesh belt furnace is comprised of magnetic belt charging machine,
pre-cleaning machine, support roller quenching furnace, quenching tank, oil removing stand,
post-cleaning machine, support-roller mesh belt tempering furnace, and electrical control system.
Features:
4.1 To meet the production needs of fastening parts, the conveyor mesh belt furnace
employs Taiwan technology, and improves its energy-saving effect in the area of refractory lining.
4.2 The mesh belt heat treatment furnace employs low-voltage heating through the transformer
to prolong the service life of the heating tubes.
4.3 The mesh belt furnace is supported by the support rollers with synchronized movement
so that the mesh belt bears a minimum tension.
4.4 The rollers of support roller continuous mesh belt heat treatment furnace are
supported by special high-pressure sealed bearing.
4.5 The mesh belt is designed with abnormal transportation alarm device to assure
the stable movement of the mesh belt.
4.6 The drip-in atmosphere is gasified by a gasifier and then sent into the furnace.
The atmosphere is monitored and controlled continuously by an oxygen probe.
4.7 The hot mesh belt returns back to the entrance of the furnace and preheats
the cold partss, which saves energy greatly.
5. Equipment Specification
| 5.1 charging machine Mesh belt width: 700mm 5.2 Precleaning machine Mesh belt width : 600mm Effective length: 2400mm Tank volume: 2m3 5.3 Mesh belt type quenching furnace Mesh belt width: 600 mm Inlet length: 2000 mm Preheating belt length: 1500mm Working area length: 8000mm Effective height: 100mm 5.4 quenching oil tank Mesh belt width : 1000mm Oil tank depth: 2000mm Oil tank length: 4200mm Tank volume: 12 m3 5.5 Oil removing stand Mesh belt width : 800mm 5.6 Post-cleaning machine Mesh belt width : 800mm Effective length: 2800mm Tank volume: 2m3 5.7 mesh belt tempering furnace Effective height: 130mm Mesh belt width : 850mm Heating area length: 8000mm |
