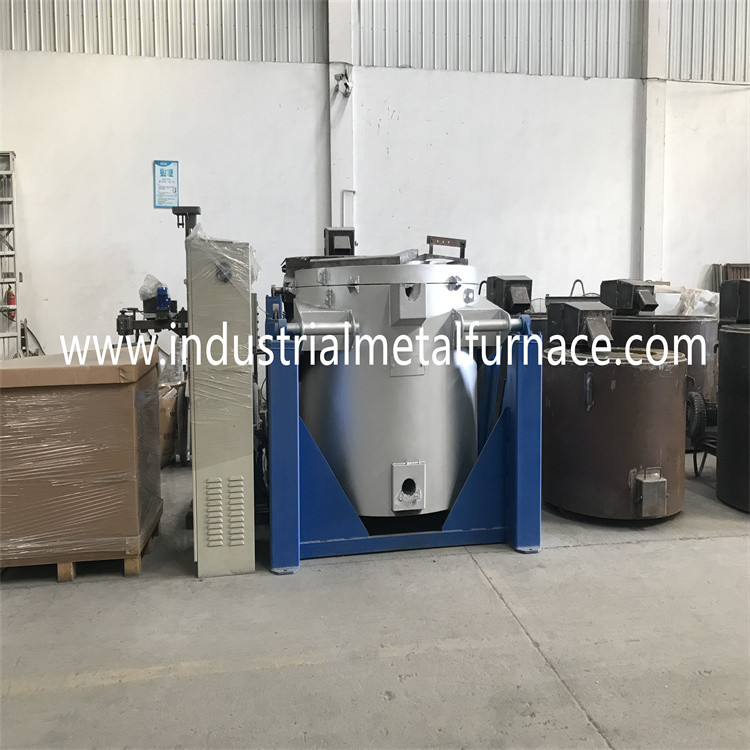

1000KG Gas Fired Tilting Type Aluminum Scraps Crucible Melting Furnaces
1. What is a crucible melting furnace?
The crucible melting furnace is applicable to melting of ferrous metal and alloy of low melting point.
The rated temperature of the furnace is 850℃. The crucible melting furnace uses a refractory
crucible which contains the metal charge. The charge is heated via gas heating via conduction
of heat through the walls of the crucible.
2. Technical Parameters
| Item | Parameter |
| Crucible capacity | 1000kg |
| Furnace type | Crucible melting furnace |
| Crucible material | Graphite crucible |
| melting rate | about 500Kg/Hr ( at continuous working status) |
| fuel gas | natural gas with heat value at 8400Kcal/M3 |
| fuel gas consumption | about 80M3/ton aluminum |
| rated working temperature | 850℃ |
| furnace body outer wall temperature | less than room temperature +50 degree Celsius. |
| rated working condition: |
a) The melting furnace and other facilities are working at a normal condition; b) The heat value of the fuel gas meets 8400Kcal/ Nm3; c) The furnace is working in a continuous manner. d) The fuel gas consumption is calculated based on 3 hours of continuous working. |
3.Supply Scope of Crucible Melting Furnace
|
Metal melting furnace body, 1 set; Control box, 1 set; Natural gas burner, 1 set; Automatic temperature controller, 1 set; Thermal coupling, 2 pieces; (1 piece for standby) Graphite crucible, 1 piece, Vesuvius or Baidun brand; Graphite crucible fire blocking ring, 1 piece; Hydraulic tilting system, 1 set; Manual, 1 copy. |
