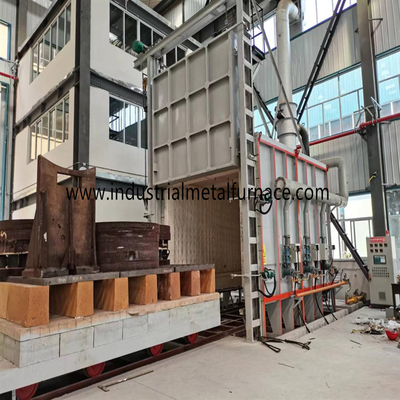

550 Degree Celsius Bogie Hearth Aluminum Wire Annealing Car Bottom Furnace for Aluminum Coils
1.Application
RT3-380-5 trolley type heat treatment furnace is mainly used for heat treatment processes such as
annealing of various aluminum alloy wires .
2.Main Technical Parameters
| No. | Item | Technical Parameters |
| 1 | Rated Power | 220 kW +5% (1-100%) adjustable |
| 2 | Power supply parameters | 440V, 3 phase, 60Hz |
| 3 | Rated temperature | 550℃, common temperature 300-500℃ |
| 4 | Empty furnace heating speed | ≤1.5h |
| 5 | Number of control zones | 4 independent temperature control zones in front and back with 4 thermocouples |
| 6 | Effective working size | 5700×1800×2100mm ( length×width×height ) |
| 7 | Furnace body dimensions | 6450×2800×3620mm (length×width×height ) Height does not include furnace door frame height |
| 8 | Trolley out of the area | ~14000mm length |
| 9 | Heating element connection | YYYYYY |
| 10 | Temperature uniformity | ±5℃ |
| 11 | Instrument temperature control accuracy | ±1℃ |
| 12 | Empty furnace power loss | ≤10% |
| 13 | Temperature control method |
Power regulator, PID regulator, Japanese island meter with 32-stage temperature control, 485 communication interface and 15-inch touch screen, which can be connected to the factory's MES system or ERP system in the future. The touch screen can record historical data for more than one year, store more than 10 processes, and has over-temperature alarm. |
| 14 | Temperature rise of furnace side outer wall | ＜40 ℃ |
| 15 | Heating element material | 0Cr2 5 AL 5(strip) |
| 16 | Furnace bottom material | ZG3 0 Cr 18Mn12 Si 2 N heat resistant steel total thickness 30mm |
| 17 | Loading method | The workpiece is hoisted on the trolley surface, and the trolley is driven into the heating |
| 18 | Furnace lining form | Adopt high temperature refractory fiber structure |
| 19 | Furnace door opening and closing form | 1 set of 2-ton electric hoist moves up and down, and its own weight compresses and seals |
| 20 | Trolley entry and exit form | 1 set of 5.5KW cycloidal pinwheel reducer drives the wheel in and out |
| 21 | Maximum loading capacity | 48 pcs Ø630 × 475mm, 250kg/pc, 12 tons in total |
| 22 | Circulation fan |
4 sets × 11KW variable frequency fans, fan blade diameter φ600mm, thickness 180mm, air volume 15000m3/h, fan blade material: 310S, fan shaft material: 310S. The aluminum alloy furnace is designed to cycle 45 times per minute to achieve high furnace temperature uniformity. |
| 23 | Wind deflector | Made of 2mm thick 304 stainless steel plate, it is bent and fixed. It is divided into 4 major areas for hot air diversion. |
| 24 | Trolley travel power supply mode | Tank chain drive |
3.Structural Introduction
RT3-380-5 trolley type electric resistance treatment furnace is mainly composed of furnace shell , furnace lining ,
furnace door and furnace door lifting mechanism, furnace door pressing and sealing mechanism; load-bearing trolley

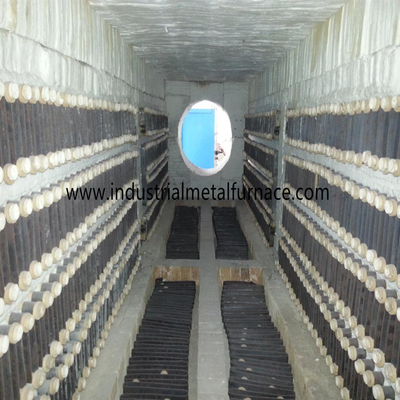

and trolley traction mechanism, furnace body and trolley sealing mechanism; heating elements and fixing devices;
furnace temperature automatic control system; circulating fan system , etc.
Hot air circulation system The hot air circulation of this equipment is mainly composed of 4 centrifugal fans and
stainless steel guide plates . The heat emitted by the heating element is blown evenly into the effective working area by the
circulating fan through the guide plate. The fan and the shaft are made of Cr20Ni20. In order to ensure the normal use of
the bearing, air cooling is adopted.
