2500 kg/H Continuous Gas Fired Industrial Aluminum Melting Furnace , Aluminum Scrap Melting Furnace
1. General Introduction

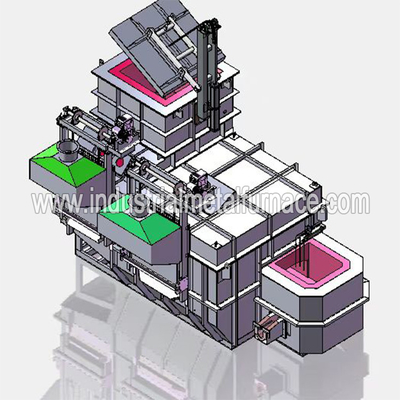

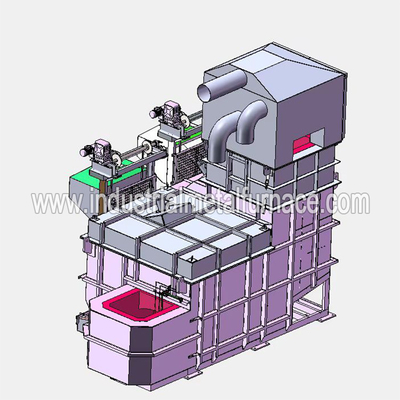

The gas fired aluminum melting furnace is a continous type, and has both the holding chamber and the melting chamber.
It has a compact structure for both melting and heat preservation function. The melting pool is formed by once-forming non-stick
aluminum casting material, which has the feature of high strength, easy to cleaning and long service life. The gas fired melting
furnace employs famous burner brand, which has automatic ignition, temperature control and over temperature alarm devices.
2. Technical Parameters of Aluminum Scrap Melting Furnace
|
2.1 Model: WDL-RJL-2500; 2.2 Furnace capacity: 6000kg; 2.3 Melting rate: 2500kg/hour (at continuous working method); 2.4 aluminum liquid temperature: 720℃; 2.5 temperature control accuracy: ±10℃; 2.6 Fuel: natural gas, value 8600Kcal/M3 gas pressure: 5-8KPa (50-80mbar); 2.7 power supply: 380V 50HZ 17.5KW; 2.8 compressed air: 0.5-0.7Mpa 1.5m3/h (with drying and oil water separation) 2.9 aluminum liquid outlet height: 1650mm; 2.10 outlet method: pneumatic stopper type outlet; 2.12 aluminum ingot: R14 or ADC12, average weight: 8kg or less; 2.13 max aluminum liquid temperature: 750°C; 2.14 melting chamber filling rate: 50% (scrap mateiral unbundled); 2.15 Maximum size of recycled material: must be smaller than the inside dimensions of the material cart; Note: The above parameters must meet the following conditions: A) The melting furnace should be in a stable state of continuous operation for more than 6 hours. B) The average fuel consumption of 3 hours in continuous melting is the calculated value. C) The actual calorific value of fuel is 8600Kcal/NM3. D) The metal melting furnace and accompanying equipment are in normal operation. E) The energy consumption of degassing, slag removal and holding time is not included in the energy consumption range. |
3. Automatic Loading Device
3.1 This device is set up for the purpose of rapid and continuous input of aluminum ingots and furnace
reburn scrap without damaging the furnace bed, and has the following properties and parameters.
|
Trolley type feeding machine |
Model | WDL-RJL-2500 |
| Lifting agency | Chain drive method | |
| Loading capacity | Maximum load capacity 600KG | |
| Allowable size of material cart | ±10MM | |
| Speed reducer | BWED 31-153-YEJ 2.2KW -4P | |
| Reduction ratio | 1/153 | |
| Motor capacity | 3KW.4P.380V.50HZ | |
| Speed Up | 6.1 m/min | |
| Material cart | 4 sets (950*950*680) | |
| Other Accessories | Shaft, chain, bearing, safety net cover, limit switch, derrick, etc. | |
| Speed Reducing Motor | BWED 31-153-YEJ 3KW -4P | 1 |
| Reduction ratio | 1:153 | 1 |
| Torque limiter | TL700-2 | 1 |
| Chains | 16A-2.5-1200 | 1 |
4. Gas Consumption of aluminum melting furnace
Gas consumption:
1) less than 65N3/ton aluminum (following conditions should be met:the content of scrap in the returned
material is less than 5%, especially when there is no scrap easily oxidized; the ratio of melted material is
50% for the returned material (density 400-500kg/M3) and 50% for the ingot; the temperature of molten
aluminum liquid after melting is 750°C.)
2) Less than 58M3/ton aluminum (continuous operation, no oily and watery material, no aluminum scraps,
30% of furnace material (density 400-500kg/M3), 70% of aluminum ingot; molten aluminum liquid temperature,
based on 720℃)
3) Less than 55M3/ton aluminum (100% for ingots in continuous operation; aluminum liquid temperature after
melting based on 720°C.)
Calculation time is timed after the material is put in, and the input raw material per hour is greater than or equal
to the melting volume per hour. When the aluminum liquid temperature in the aluminum metal melting furnace
is reached and the aluminum liquid is
discharged, the water output reaches the melting efficiency specified by the equipment, and the minimum 3
hours is a statistical cycle, take the average value as the unit energy consumption standard.
6. Supply Scope
| No. | Type | Q’ty |
| 1 | Equipment body | 1 set |
| 2 | Combustion system | 1 set |
| 3 | Combustion safety detection device | 1 set |
| 4 | Combustion safety detection device | 1 set |
| 5 | Low pressure air piping | 1 set |
| 6 | Material (liquid) level detector | 1 set |
| 7 | Secondary power lines | 1 set |
| 8 | Feeding device | 1 set |
| 9 | Electrical control cabinet device | 1 set |
| 10 | Feeding cart | 4 units |
