1. Technical Specification
| No. |
Item |
Specification |
| 1 | Effective working size |
2000*1000*1000mm |
| 2 |
Furnace hearth size |
2400*1400*1200mm |
| 3 |
Rated temperature |
1300℃ |
| 4 |
Max temperature rise speed |
Heating rate 10-150℃/hour at full loading capacity |
| 5 |
Fuel |
natural gas |
| 6 | heating zone | 1 zone |
| 7 |
Burner |
2pcs, AGS100HB, 230kw/h |
| 8 |
Temperature control method |
imported Intelligence temperature controller, Industrial remote control to control furnace door up and down and trolley in and out |
| 9 |
Temperature record |
S type thermal couple |
| 10 |
Furnace lining |
all fiber structure |
| 11 |
Bogie motor power |
2.2KW/set *1set |
| 12 |
Combustion fan power |
5.5KW |
| 13 |
Furnace door opening method |
By 1 ton electric hoist up and down, Speed 6-8m/min |
| 14 |
Bogie moving speed |
6-8m/min, with manual operate remote control |
NOTES: The size of the furnace could be customized.

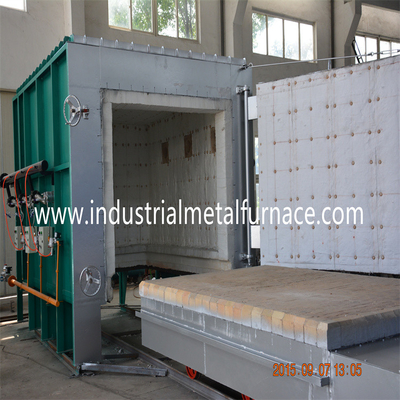

2. Application
The trolley furnace is a periodic operation furnace, which is widely used in high chromium, high manganese steel
castings, gray iron castings, ductile iron castings, rolls, steel balls, crusher hammers, wear-resistant lining plate
quenching, annealing, aging and Heat treatment of various mechanical parts.

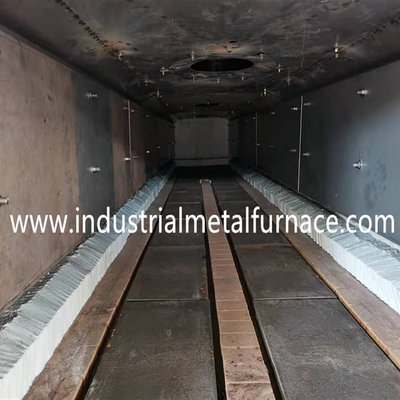

3. furnace lining
The main material of the furnace lining is a zirconium-containing and chromium-containing composite refractory fiber
folded block with a long-term service temperature of 1250 °C, which has the advantages of low thermal conductivity,
light bulk density, good thermal insulation performance, easy construction, and long service life. And it can effectively
reduce the storage and heat dissipation losses of the furnace lining, and greatly save energy.
Compared with the brick type furnace, the whole fiber structure furnace can save about 60% of energy.
4. Furnace type
4.1. High temperature series (furnace temperature 0～1200℃) trolley type heating furnace (5 tons-100 tons) is suitable
for high temperature normalizing, annealing, quenching, roll high temperature annealing and solution treatment heating
of stainless steel parts of high alloy steel;
4.2. Medium temperature series (furnace temperature 0～950℃) trolley type heating furnace (5 tons-100 tons) is suitable
for general metal parts, and heat treatment such as normalizing, annealing, quenching and so on is carried out in the air.
Canning annealing of high-speed steel materials and bearing steel materials;
4.3. Low temperature series (furnace temperature 0～750℃) trolley type heating furnace (5 tons-200 tons) is suitable for
tempering, low temperature annealing and core drying of steel parts;
4.4. The super-long trolley furnace is suitable for the canning, annealing and heating of pipes, cold-drawn sections, straight
rods, and coils;
4.5. The double-door double-trolley heating furnace is suitable for the heating process of semi-continuous production of
processed materials. The furnace is highly efficient.
