Tilting Type Gold Industrial Metal Melting Furnace Medium Frequency 10-250KG
Advantages

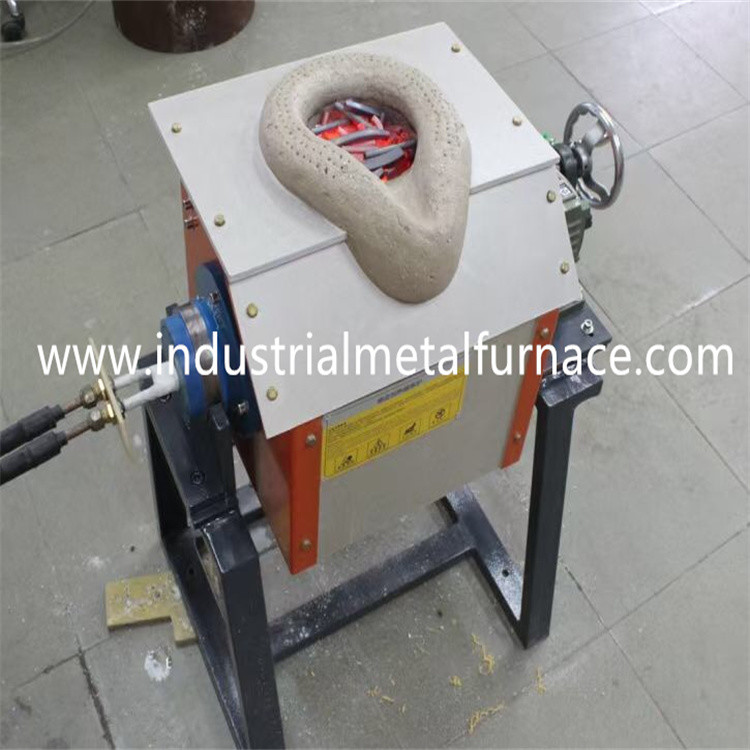

The tilting type gold industrial metal melting furnace is tilting type.
This type industrial metal melting furnace has a small size, a light weight and is very convenient in use.

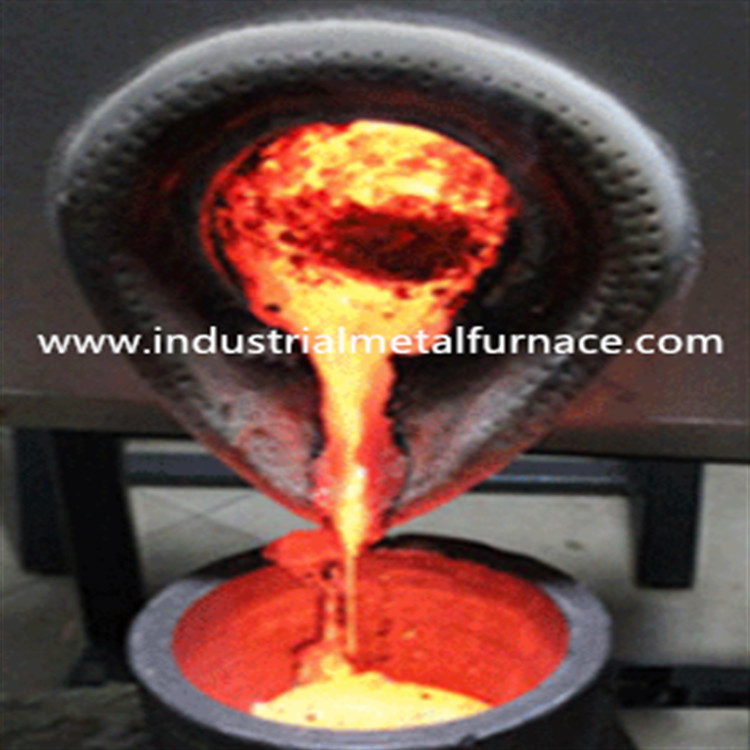

The tilting method can be mechanical tilting, hydraulic tilting, or electrical tilting type. According to the
customer’s requirement, the infrared thermometer and the temperature controller can be added additionally.
Technical Parameters of Gold Industrial Metal Melting Furnace
| Working Power | 15-160KW |
| Input voltage range | 70V-550V |
| Material to be melted | Gold |
| Capacity of industrial metal melting furnace | 10-250kg |
| Output oscillation frequency | 1-20KHZ |
| Cooling water requirement |
≥0.2Mpa ≥6L/min |
| Lead time | 5 days |
Power Table for Tilting Gold Industrial Metal Melting Furnace
| Specifications and parameters of medium frequency smelting furnace series | |||
| Input power |
Melting capacity of Gold |
Furnace body size (length/width/height,mm) |
Power supply size(mm) |
|
15KW
|
10KG | 800*550*750 |
Cabinet 1:530*290*520 Cabinet 2 :500*230*460 |
|
25KW
|
20KG | 800*550*750 |
Cabinet 1::530*290*520 Cabinet 2:500*230*460 |
|
35KW
|
30KG |
830*560*920
|
Cabinet 1:630*340*540 Cabinet 2:500*230*460 |
|
45KW
|
50KG |
890*620*1020
|
Cabinet 1:700*350*620 Cabinet 2:500*230*460 |
|
70KW
|
100KG |
940*650*1100
|
Cabinet 1:700*350*620 Cabinet 2:550*400*510 |
|
90KW
|
120KG |
940*650*1100
|
Cabinet 1:820*420*890 Cabinet 2:550*400*510 |
|
110KW
|
150KG |
1050*790*1200
|
Cabinet 1:820*420*890 Cabinet 2:550*400*510 |
|
160KW
|
250KG |
1050*790*1200
|
Cabinet 1:750*500*960 Cabinet 2:550*400*510 |
We also have medium and big size induction melting furnaces. The max capacity reaches 20Ton
or more based on each customer’s requirement.
Supply Scope of Industrial Metal Melting Furnace
|
Heating power source, 1 set; Foot switch, 1 pc; Connection wire 2pcs; single wire 1 pc; Industrial metal melting furnace body 1set; flexible connection cable 2pcs; Protective cap 1 set; protective gloves 1 pair; User manual 1 copy; |
Main Features
3.1The industrila metal melting furnace adopts IGBT power device and unique frequency conversion
technology to operate stably and provide higher reliability and durability. It has the function of constant
current and constant power control, which greatly optimizes the metal heating process, realizes efficient
and fast heating, and gives full play to the advantages of the product. Under the same conditions, it has
twice the power saving than the traditional SCR medium frequency. With 100% load design, it can work
continuously for 24 hours and improve heating quality.
3.2 The metal melting furnace has alarm function and fault detection function, such as fault state
protection and display including overcurrent, overvoltage and water shortage, etc.
3.3 The main power devices of the induction melting furnace are all German Siemens brands,
and the main electronic components are imported products (Motorola (diode), NEC (triode), ST
(three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably and have
higher reliability and durability.
