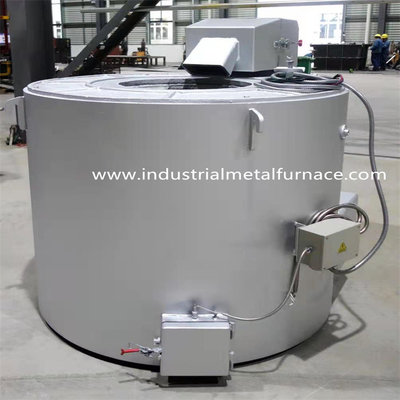

Natural Gas Fixed Type Cast Iron Crucible Industrial Metal Melting Furnaces For Zinc Alloy
1.melting furnace introduction
The gas fired industrial metal melting furnace is used to melt zinc alloy with a rated temperature of
650 degree celcius (atmosphere temperature) with natural gas as fuel.
In comparison with the normal induction melting furnace, the gas fired zinc alloy industrial metal melting
furnace with cast iron crucible is more easy in operation, and more cost saving.
The natural gas fired zinc alloy melting furnace doesn’t require cooling system, and is very easy in installation and operation.
2.Technical Specifications
| Item | Parameters |
| model | WDL-RCUQ-400 |
| Furnace application | Zinc Alloy industrial metal melting furnace |
| crucible capacity | 400KG |
| melting rate | about 200Kg/Hr (at continuous working status) |
| Fuel | natural gas 8400Kcal/M3 |
| rated working temperature | 650℃ (atmosphere) |
| temperature uniformity | ±15℃ |
| gas consumption | about 25m3/ton zinc for gas |
| loss rate | about 1% |
| Gas burner brand | Riello, Italy |
| Furnace type | Fixed type |
3. Features

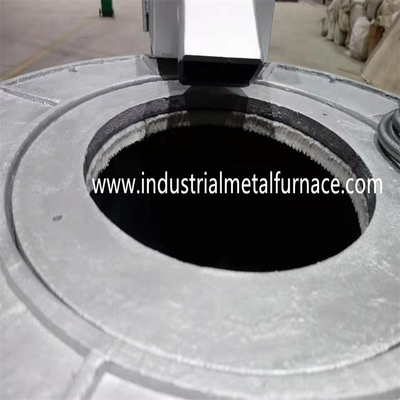

3.1 The crucible zinc alloy industrial metal melting furnace shell is fabricated from steel plates and
sectional steel.
3.2 The refractory lining of the industrial metal melting furnace is made of once-forming castable.
The castable material is high temperature type supplied by Allied Mineral Products (Tianjin) Co., Ltd.
The heat preservation layer is comprised of porcelain fiber board, and light mullite heat preservation bricks.
Advantages of lining: good heat preservation purpose, low energy consumption, and long service life.
4.Supply scope
|
Crucible industrial metal melting furnace body, 1 set; Control box, 1 set; Gas burner, 1 set; Thermal coupling, 2 pieces (1 piece for standby); Cast Iron crucible, 1 piece for melting zinc alloy; Heat preservation material bundle, 1 set; |
