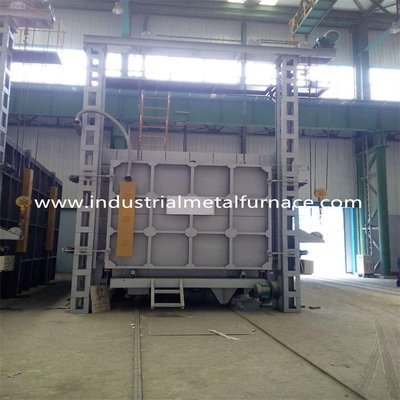

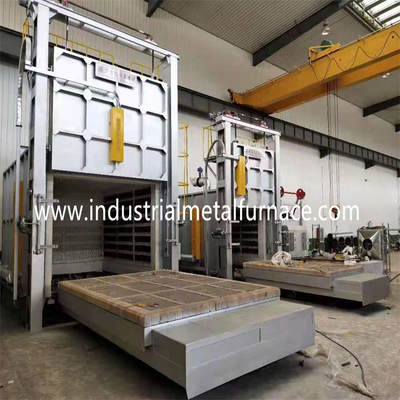

950 Degree Box Type Electric Resistance Heat Treatment Furnace
1. Application
WDL-RX series box-type resistance heat treatment furnace is a
cycle operating furnace. The rated temperature of the
box type heat treatment furnace is 150-1350 degrees Celsius,
which is used for normalizing, annealing, quenching and
other uses for heating metal parts in an oxidizing atmosphere.
This series of electric heat treatment furnace adopts the light
brick and refractory fiber lining to save energy consumption.
The box type heat treatment furnace can be used for heat
treatment of ceramic products, high alloy steel parts
and melting and sintering of metals.
2. Technical Parameters
| Model | Item | Rated Power (Kw) | Max Working Temperature (℃) |
Hearth Size (mm) |
Max Loading Capacity (kg) |
| WDL-RX-15 | Box Type Resistance Furnace | 15 | 950 | 650×300×250 | 80 |
| WDL-RX-30 | Box Type Resistance Furnace | 30 | 950 | 950×450×350 | 200 |
| WDL-RX-45 | Box Type Resistance Furnace | 45 | 950 | 1200×600×400 | 400 |
| WDL-RX-60 | Box Type Resistance Furnace | 60 | 950 | 1500×750×450 | 700 |
| WDL-RX-75 | Box Type Resistance Furnace | 75 | 950 | 1800×900×550 | 1200 |
| WDL-RX-90 | Box Type Resistance Furnace | 90 | 1200 | 1500×750×450 | 1500 |
| WDL-RX-115 | Box Type Resistance Furnace | 115 | 1200 | 1800×900×550 | 2000 |
3. Product Range
Our company supplies a wide range of heat treatment furnaces such as box type heat treatment furnace,
bogie hearth heat treatment furnace, mesh belt furnace, pit type furnace, pit type carburizing furnace, etc.
