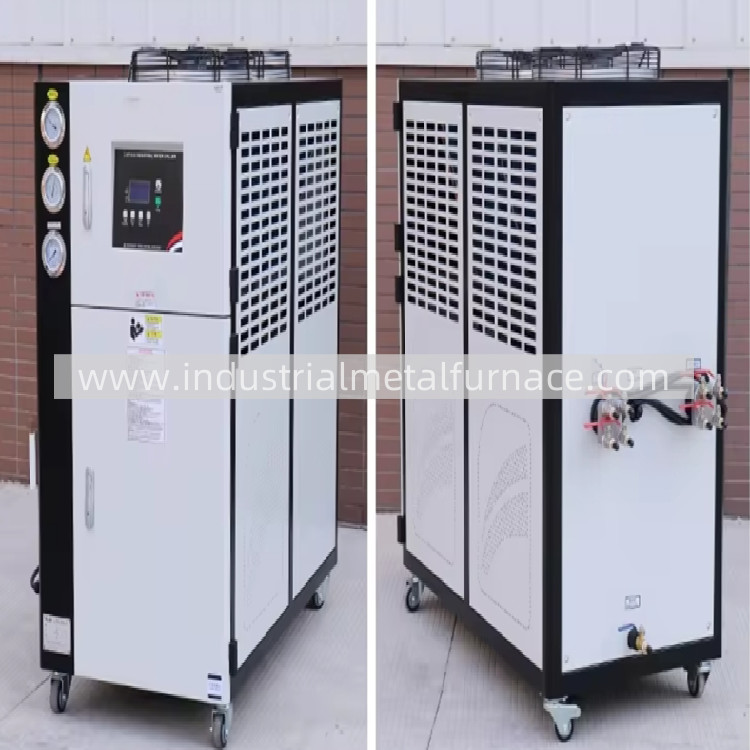

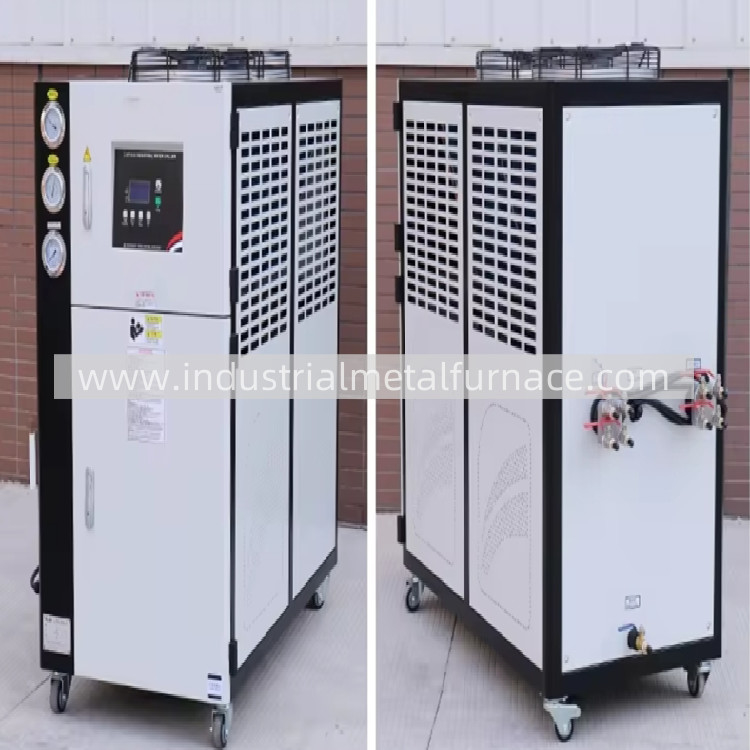

Customized Industrial Air Cooling Chiller Cooled Industrial Metal Melting Furnace
1. Instructions for use
1. This industrial chiller unit is used in standard working conditions and clean tap water must be used as the coolant.
3. Power supply standard: 3P-380V-50Hz. Allowable voltage fluctuation ±10%, allowable phase voltage difference ±2%;
4. The actual lift of the main engine is the pump lift minus the head loss inside the main engine (1mH2O=9.8kPa);
5. If you have other requirements, please indicate. We can accept special orders;
6. Air-cooled chillers pay the most attention to heat dissipation. Before installation, please choose a place with a stable foundation, unobstructed air, and no corrosive pollution. If there is a canopy, it is best to be more than 2 meters above the machine.
If you still find that the air around is stuffy during use, please install an exhaust fan to maintain air convection, or
use an exhaust duct to discharge the exhausted hot air to the outside. This will not only extend the service life of
the air cooling chiller, but also improve efficiency and reduce costs.
7. The ambient temperature for installing the machine should be below 36°C to ensure the machine can perform
at its maximum efficiency.
2. Technical Parameters
| No. | Item | Specification | Parameters |
| 1 | model | Air-cooled chiller | WDL-AE-06A |
| Temperature control range | ℃ | +5～+35 | |
| Temperature control accuracy | ℃ | ±1-2 | |
| 2 | Nominal cooling capacity | kW | 16.9 |
| kcal/h | 14530 | ||
| 3 | power supply | V | 3P-380V-50HZ |
| 4 | Machine power | kW | 6.6 |
| 5 | Machine current | A | 14.2 |
|
6
|
compressor | Type | Fully enclosed scroll |
| Cooling input power (kW) | 4.5 | ||
| Cooling operation current (A) | 9.8 | ||
| 7 | Fan | Type | External rotor axial flow fan |
| Air volume ( m3/h) | 6000 | ||
| 8 | Built-in water pump | Type | Centrifugal clean water pump |
| Lift (mH 2 O) | 20 | ||
| Flow rate (m3 /h) | 4 | ||
| 9 | Condenser | Type | Aluminum fin sleeve copper tube type |
| Heat exchange capacity ( kW) | 21.4 | ||
| 10 | Evaporator | Type | Coil Type |
| Heat exchange capacity ( kW) | 17.0 | ||
| Flow rate (m3 /h) | 2.91 |
| 11 | Built-in water tank | Material | SUS304 or PP |
| Volume(L) | 70 | ||
| 12 | Piping | Chilled water media outlet | DN25(according to customer requirements) |
| Chilled water media inlet | DN25(according to customer requirements) | ||
| 13 | Temperature digital display microcomputer controller | Display Status | Touch digital tube display |
| Output | Gw532A | ||
| Output device selection | Relay output | ||
|
14
|
Alarm device | Abnormal temperature | Circulating water temperature is too low to alarm and cut off the compressor |
| Power supply reverse phase | Power phase detection prevents pump and compressor from reversing | ||
| High and low voltage fault | Pressure switch detects the pressure status of the refrigerant system | ||
| Compressor overload | Protect the compressor | ||
| Compressor overheating | Internal protector protects the compressor | ||
| Pump overload | Protect the pump | ||
| Low water alarm | Water level switch | ||
| Short Circuit | Air switch | ||
| 15 | Dimensions | Length(mm) | 1200(reference) |
| Width(mm) | 650(reference) | ||
| Height(mm) | 1480 (reference) | ||
| 16 | Machine weight | kg | 250(reference) |
