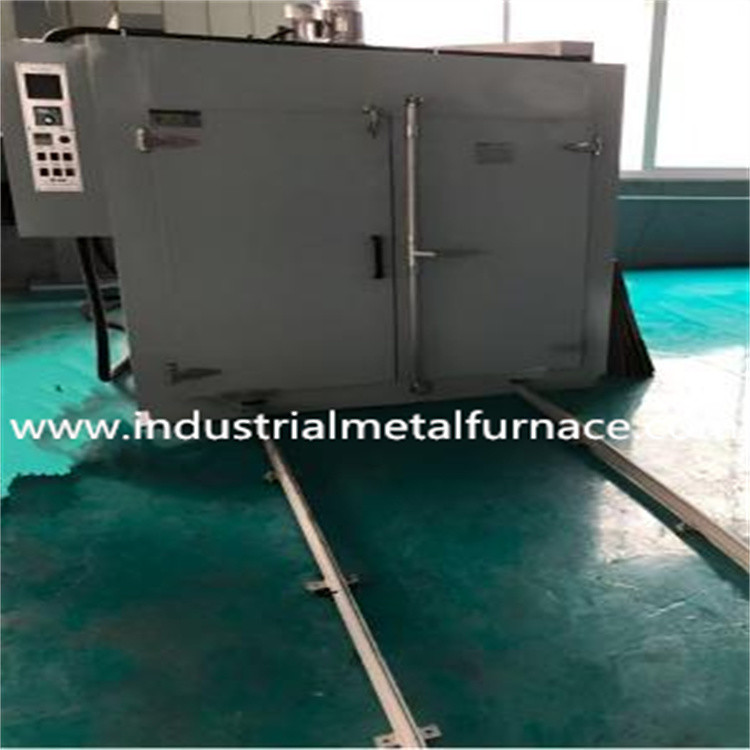

Barrel material oven used to dry, cure, or pre-heat materials
1.Working principle of Barrel material oven
A barrel material oven works by using heating elements to generate heat that is
transferred to the barrels and their contents through conduction and convection,
with a temperature control system maintaining a set temperature and an air circulation
system ensuring even heat distribution for uniform drying, curing or pre - heating of the materials.
| 2. Basic parameters of the equipment | |
| External Material: | Q235 cold rolled steel plate |
| Studio Material: | SUS304 stainless steel |
| Studio size: | 2600*1300*1300 (depth*width*height) image device size |
| Equipment bottom structure: | Load-bearing feet, wheels and adjustment feet, Foma wheels (customer-selected) |
| Temperature range: | Room temperature RT~200℃ |
| Heating material/power: | Surface low-load metal heating element, service life 30,000 to 50,000 hours |
| Blower power: | 750W*3 |
| Temperature uniformity: | ±3℃ (tested after 20 minutes of no-load constant temperature) |
| Temperature control accuracy: | ±1℃ |
| Control method: | The SSR module controls the output to achieve fine PID temperature control. (It covers the impact of large instantaneous current impact and large control fluctuation caused by traditional zero-crossing triggering, and can make the output voltage change smoothly and linearly, and automatically adjust the output power size according to the temperature error, making the internal temperature of the equipment more stable and the performance excellent.) |
| Air supply mode: | Forced horizontal air supply/strong pressure horizontal air supply |
| Timing device: | HS48S-99.99 timing device can be switched on and off manually or automatically. When the temperature reaches the set temperature, the timing starts. When the time reaches the set range, the heating power is cut off. A buzzer alarm is sounded. |
| Secondary mechanical protection: | Prevent the main temperature control of the equipment from failing, causing the temperature to continue to rise. |
| Studio Configuration: | |
| Control optional accessories: | Recorder, touch screen control, ventilation and smoke exhaust, timer power on and off, |
| Studio accessories: | Trolleys, pallets, partitions, mesh |
| Other requirements: | We can design and manufacture equipment according to the actual size and function requirements of customers. |
| 3. Our company specializes in non-standard equipment manufacturing and design※: (depth*width*height) | ||||
| model | Liner size | External dimensions | Equipment power (kw) | Voltage(V) |
| WDL304-1 | 350*450*450 | 500*1070*1020 | 2.4 | 220/380 |
| WDL304-2 | 450*550*550 | 650*1120*1020 | 3.6 | 220/380 |
| WDL304-3 | 500*600*750 | 750*1200*1390 | 5 | 220/380 |
| WDL304-4 | 800*800*1000 | 1050*1400*1720 | 9.75 | 220/380 |
| WDL304-5 | 1000*1000*1000 | 1250*1400*1720 | 12.75 | 380 |
| WDL304-6 | 1000*1200*1200 | 1250*1600*1980 | 16 | 380 |
| WDL304-7 | 1000*1200*1500 | 1250*1600*2280 | 19.5 | 380 |
| WDL304-8 | 1200*1500*1500 | 1450*1900*2280 | 23.2 | 380 |
