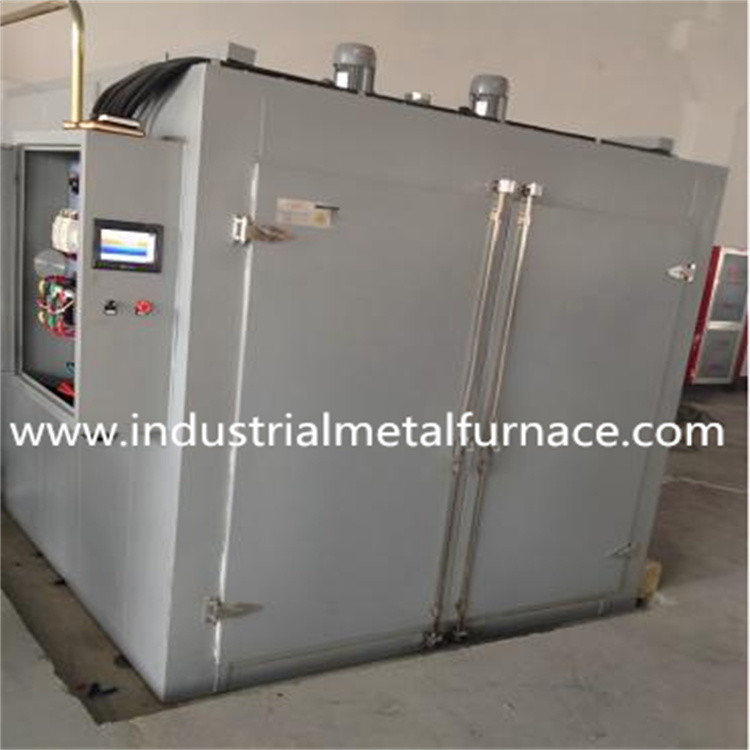

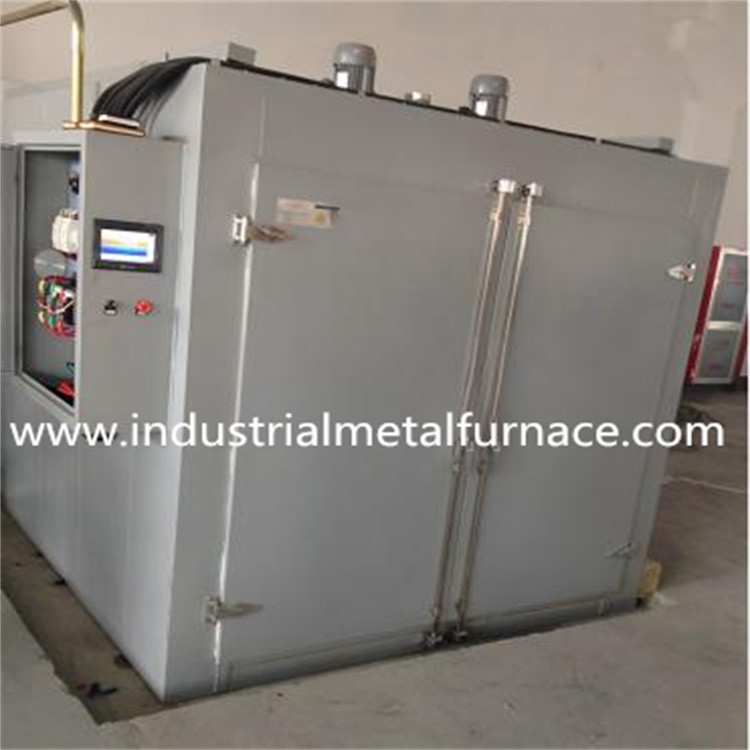

Industrial Steel plate oven for annealing, tempering, and normalizing
1.Working principle of steel plate oven
A steel plate oven works by using heating elements like electric resistance wires or
gas burners to generate heat that is transferred to the steel plate via radiation and
convection, while a temperature control system with sensors and a controller maintains
the set temperature and high - quality insulation materials reduce heat loss.
| 2. Basic parameters of the equipment | |
| External Material: | Q235 cold rolled steel plate |
| Studio Material: | SUS304 stainless steel |
| Studio size: | (Depth*Width*Height) Image device size |
| Equipment bottom structure: | Load-bearing feet, wheels and adjustment feet, Foma wheels (customer-selected) |
| Temperature range: | Room temperature RT~300℃ |
| Heating material/power: | Surface low-load metal heating element, service life 30,000 to 50,000 hours |
| Blower power: | |
| Temperature uniformity: | ±3℃ (tested after 20 minutes of no-load constant temperature) |
| Temperature control accuracy: | ±1℃ |
| Control method: | The SSR module controls the output to achieve fine PID temperature control. (It covers the impact of large instantaneous current impact and large control fluctuation caused by traditional zero-crossing triggering, and can make the output voltage change smoothly and linearly, and automatically adjust the output power size according to the temperature error, so that the internal temperature of the equipment is stable and the performance is excellent.) |
| Air supply mode: | Forced horizontal air supply/strong pressure horizontal air supply |
| Timing device: | HS48S-99.99 timing device can be switched on and off manually or automatically. When the temperature reaches the set temperature, the timing starts. When the time reaches the set range, the heating power is cut off. A buzzer alarm is sounded. |
| Secondary mechanical protection: | Prevent the main temperature control of the equipment from failing, causing the temperature to continue to rise. |
| Studio Configuration: | |
| Control optional accessories: | Recorder, touch screen control, ventilation and smoke exhaust, timer power on and off, |
| Studio accessories: | Trolleys, pallets, partitions, mesh |
| Other requirements: | We can design and manufacture equipment according to the actual size and function requirements of customers. |
| 3. Our company specializes in non-standard equipment manufacturing and design※: (depth*width*height) | ||||
| model | Liner size | External dimensions | Equipment power (kw) | Voltage(V) |
| WDL304-1 | 350*450*450 | 500*1070*1020 | 2.4 | 220/380 |
| WDL304-2 | 450*550*550 | 650*1120*1020 | 3.6 | 220/380 |
| WDL304-3 | 500*600*750 | 750*1200*1390 | 5 | 220/380 |
| WDL304-4 | 800*800*1000 | 1050*1400*1720 | 9.75 | 220/380 |
| WDL304-5 | 1000*1000*1000 | 1250*1400*1720 | 12.75 | 380 |
| WDL304-6 | 1000*1200*1200 | 1250*1600*1980 | 16 | 380 |
| WDL304-7 | 1000*1200*1500 | 1250*1600*2280 | 19.5 | 380 |
| WDL304-8 | 1200*1500*1500 | 1450*1900*2280 | 23.2 | 380 |
