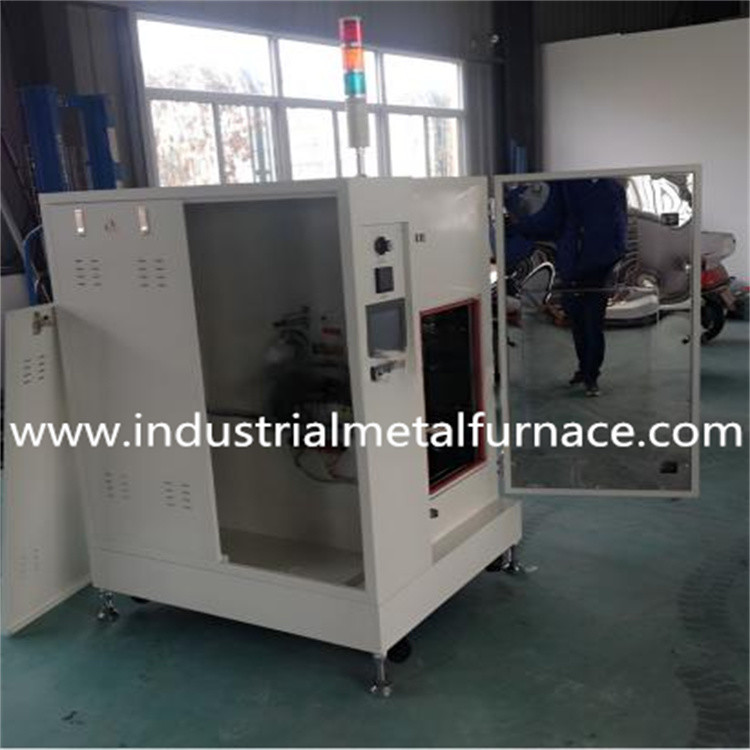

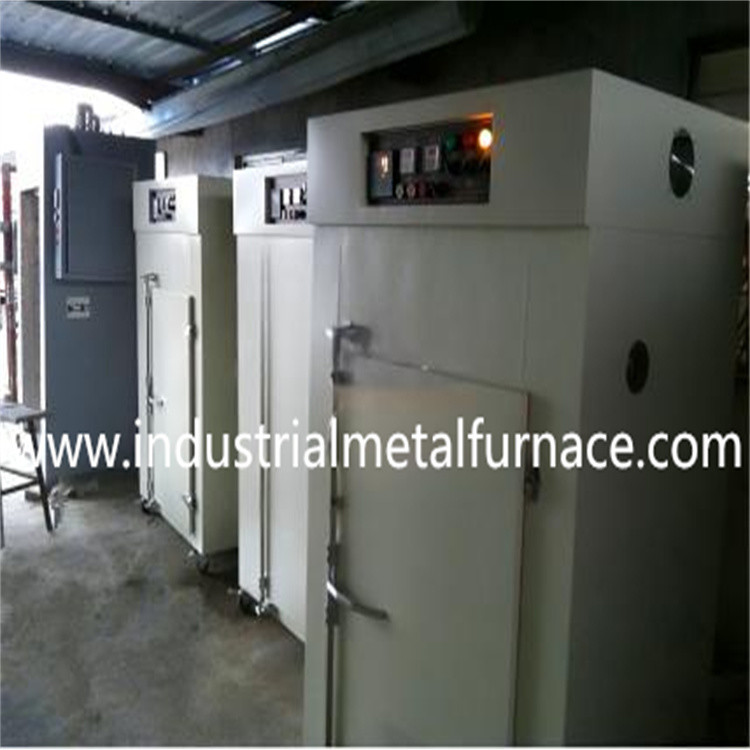

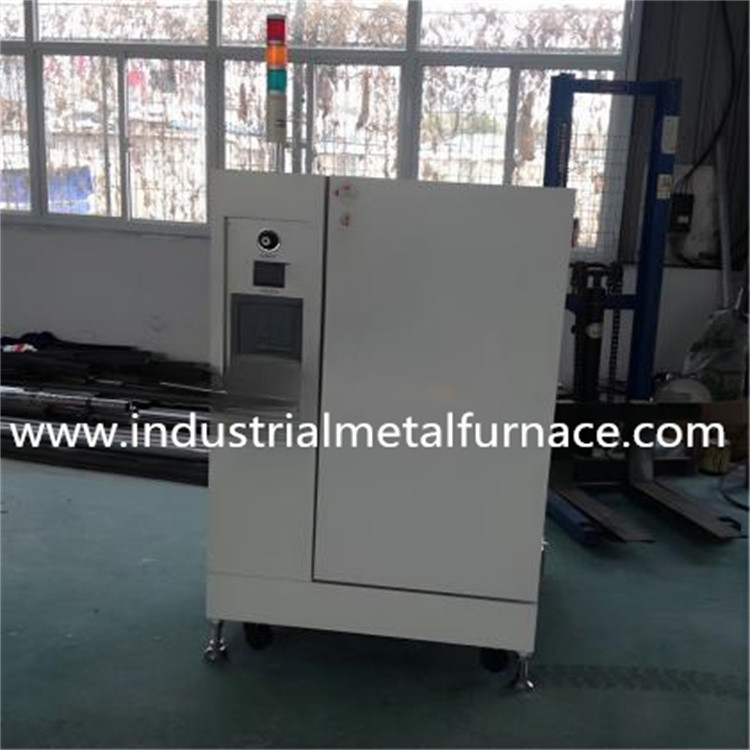

Industrial Hot Air Electrical Drying Heating Curing Oven For Electrical Components
1.Working principle of drying oven
A box type drying oven operates by using heating elements to generate heat that is evenly
distributed by a circulation system, all while maintaining a clean environment
through features like air filtration and sealed construction to prevent contaminants
from entering during heating, drying, or curing processes.
2. Application
The application range of this box type oven is extremely wide. It is a drying equipment for
electronic components, medical devices, semiconductors, LED, optics, college
experiments, medicine and other industries with clean requirements, which require
drying, curing, aging, constant temperature, experiment, etc.! The temperature control
device adopts digital display temperature control, which is eye-catching and equipped
with reliable protection devices. It has a unique high-temperature filter, and the box body
is fully enclosed. The air entering the studio is repeatedly laminar filtered by the
high-temperature filter. The air in the box is repeatedly self-circulated and quickly enters
a low-dust state, meeting the process requirements. The studio is (SUS304 mirror
stainless steel plate). 100K grade aluminum silicate fiber is filled between the shell and
the studio, which has good thermal insulation and heat insulation performance.
The reasonable wind flow design makes the temperature uniformity in the box good.
The heating element of the curing oven is placed in the box and can be placed on the top.
The temperature control adopts digital display intelligent instrument PID adjustment, automatic
temperature control, and constant temperature. It is easy and convenient to operate, and is also equipped
with over-temperature, leakage time control, alarm and other devices. It is an ideal product
that saves time, effort and energy.
3.Basic parameters of the equipment
| 1. Box structure dimensions (grade: 100) Equipment number: CX2012-9-03 |
| 1.1 Studio size: 400*400*600 (depth*width*height mm) |
| 1.2 Inner material: SUS304 mirror stainless steel External material: Q235 steel plate |
| 1.3Temperature uniformity: ±2℃％ Temperature control accuracy: ±1℃ |
| 1.4 Working temperature range: room temperature ~ 250℃ |
| 1.5 Sealing: Equipped with silicone door strips to effectively prevent heat loss, maintain stable temperature and achieve good energy-saving effect. |

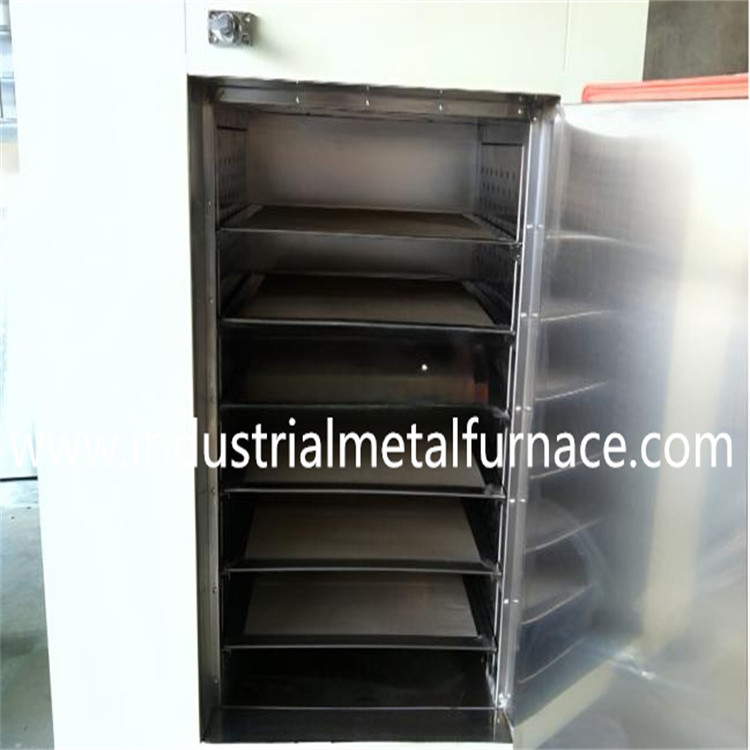

| 1.6 studio configuration: 3 layers of partitions |
| 1.7 The interior of the equipment is guaranteed to be an oil-free, dust-free and pollution-free clean space. |
| 2. Control system |
| 2.1 Heater material: high-quality stainless steel electric heater, 4.5KW; has the characteristics of high resistivity, high operating temperature and long service life, completely independent system, does not affect the control circuit |
| 2.2 Temperature controller: PXR-9 Fuji microcomputer automatic calculation single-stage controller + SSR solid-state relay * 1 set, the temperature sensor adopts K TYPE, which is accurate and guaranteed, and is automatically interlocked with the electric heater. |
| 2.3 Timer, constant temperature timer: Within the range of 0-99h (m), timing starts when the temperature in the oven reaches the set point. When the baking time reaches the set time, the heating system is automatically shut down. There is a timing buzzer alarm. The working time can be set according to actual needs, the electric heater is automatically stopped, and the circulating fan is delayed to stop. |
| 2.4 Secondary mechanical protection: Non-electronic control protector can prevent electronic products from being interfered with or malfunctioning, and play a secondary mechanical protection role. |
| 2.5 Filtration system: 100-level filtration system. |
| 3. After-sales service commitment: 1. One-year warranty for the whole machine, maintenance. |
| 4. Our company specializes in non-standard equipment manufacturing and design※: (depth*width*height) | ||||
| model | Liner size | External dimensions | Equipment power (kw) | Voltage(V) |
| WDL304-1 | 350*450*450 | 500*1070*1020 | 2.4 | 220/380 |
| WDL304-2 | 450*550*550 | 650*1120*1020 | 3.6 | 220/380 |
| WDL304-3 | 500*600*750 | 750*1200*1390 | 5 | 220/380 |
| WDL304-4 | 800*800*1000 | 1050*1400*1720 | 9.75 | 220/380 |
| WDL304-5 | 1000*1000*1000 | 1250*1400*1720 | 12.75 | 380 |
| WDL304-6 | 1000*1200*1200 | 1250*1600*1980 | 16 | 380 |
| WDL304-7 | 1000*1200*1500 | 1250*1600*2280 | 19.5 | 380 |
| WDL304-8 | 1200*1500*1500 | 1450*1900*2280 | 23.2 | 380 |
