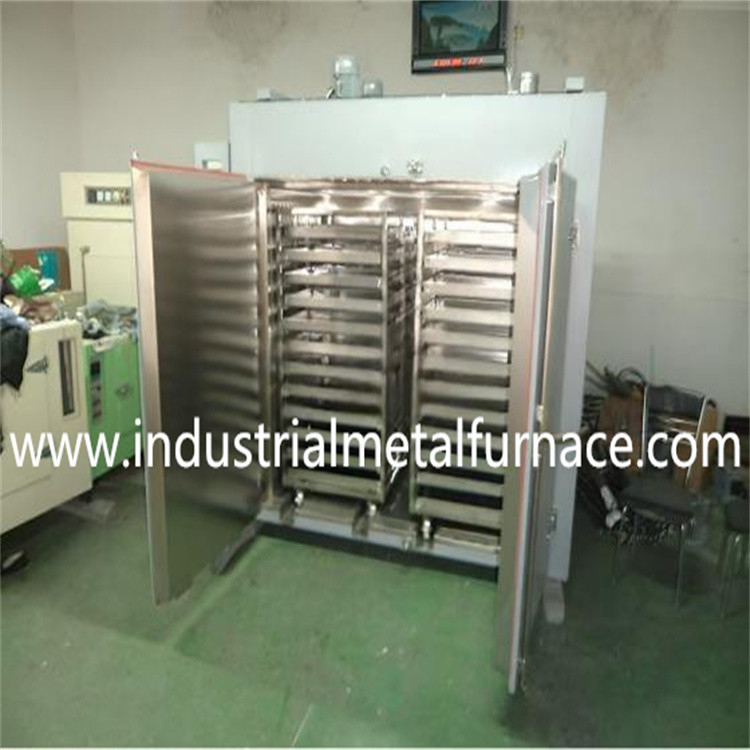

Industrial Plastic pellet oven for drying plastic pellets
1. Application
A plastic pellet oven is used for drying plastic pellets. This removes moisture, ensuring better
quality during plastic processing like injection molding or extrusion, as dry pellets prevent
defects such as voids and surface imperfections in the final plastic products.
| 2. Basic parameters of the equipment: | |
| External Material: | Q235 cold rolled steel plate |
| Studio Material: | SUS304 stainless steel |
| Studio size: | 1200*1700*1600 (depth*width*height) image device size |
| Equipment bottom structure: | Load-bearing feet, wheels and adjustment feet, Foma wheels (customer-selected) |
| Temperature range: | Room temperature RT~300℃ |
| Heating material/power: | Surface low-load metal heating element, service life 30,000 to 50,000 hours |
| Blower power: | 2200W |
| Temperature uniformity: | ±3℃ (tested after 20 minutes of no-load constant temperature) |
| Temperature control accuracy: | ±1℃ |
| Control method: | The SSR module controls the output to achieve fine PID temperature control. (It covers the impact of large instantaneous current impact and large control fluctuation caused by traditional zero-crossing triggering, and can make the output voltage change smoothly and linearly, and automatically adjust the output power size according to the temperature error, so that the internal temperature of the equipment is stable and the performance is excellent.) |
| Air supply mode: | Forced horizontal air supply/strong pressure horizontal air supply |
| Timing device: | HS48S-99.99 timing device can be switched on and off manually or automatically. When the temperature reaches the set temperature, the timing starts. When the time reaches the set range, the heating power is cut off. A buzzer alarm is sounded. |
| Secondary mechanical protection: |
Prevent the main temperature control of the equipment from failing, causing the temperature to continue to rise. When the secondary protection setting value is reached, the heating is cut off and an audible and visual alarm is issued. |
| Studio Configuration: | 48 trays |
| Control optional accessories: |
Recorder, touch screen control, ventilation and smoke exhaust, timer power on and off, Remote Control |
| Studio accessories: | Trolleys, pallets, partitions, mesh |
| Other requirements: | We can design and manufacture equipment according to the actual size and function requirements of customers. |
3. Our company provides the following conventional models for reference
| ※Our company specializes in non-standard equipment manufacturing and design※: (depth*width*height) | ||||
| model | Liner size | External dimensions | Equipment power (kw) | Voltage(V) |
| WDL304-1 | 350*450*450 | 500*1070*1020 | 2.4 | 220/380 |
| WDL304-2 | 450*550*550 | 650*1120*1020 | 3.6 | 220/380 |
| WDL304-3 | 500*600*750 | 750*1200*1390 | 5 | 220/380 |
| WDL304-4 | 800*800*1000 | 1050*1400*1720 | 9.75 | 220/380 |
| WDL304-5 | 1000*1000*1000 | 1250*1400*1720 | 12.75 | 380 |
| WDL304-6 | 1000*1200*1200 | 1250*1600*1980 | 16 | 380 |
| WDL304-7 | 1000*1200*1500 | 1250*1600*2280 | 19.5 | 380 |
| WDL304-8 | 1200*1500*1500 | 1450*1900*2280 | 23.2 | 380 |
