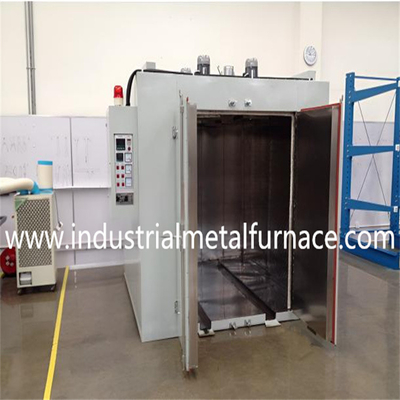

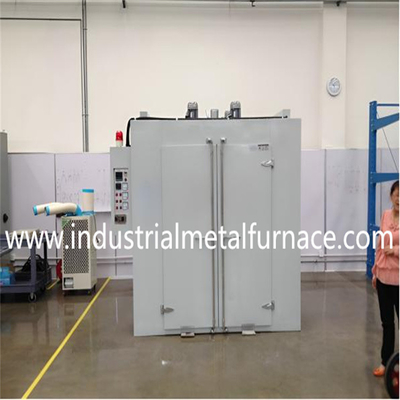

Hanger Oven Equipment Mainly Used By Customers To Hang And Dry Products

Hanger oven : This equipment is mainly used by customers to hang and dry products

1. Basic parameters of the equipment
External material: Q235 cold-rolled steel plate
Studio material: SUS304 stainless steel
Studio size: 2000*1700*1600 (depth*width*height) Equipment

size in the picture
Equipment bottom structure: load-bearing feet, wheels and

adjustment feet, Foma wheels (customer-selected)
Temperature range: room temperature RT~300℃
Heating material/power: Surface low-load metal heating

element, service life 30,000 to 50,000 hours
Blowing power:
Temperature uniformity: ±3℃ (tested after 20 minutes of

no-load constant temperature)
Temperature control accuracy: ±1℃
Control method: SSR module control output to achieve fine

PID adjustment temperature control. (It covers the influence

of large instantaneous current impact and large control

fluctuation caused by traditional zero-crossing triggering,

and can make the output voltage change smoothly and linearly.

It automatically adjusts the output power size according to

the temperature error, so that the internal temperature of the

equipment is stable and the performance is excellent.)
Air supply mode: forced horizontal air supply/strong pressure

horizontal air supply
Timing device: HS48S-99.99 timing device, which can be

switched manually/automatically. When the temperature

reaches the set temperature, the timing starts, and when

the time reaches the set range, the heating power is cut off.

And the buzzer alarm prompts.
Secondary mechanical protection: Prevent the main temperature

control of the equipment from failing, causing the temperature

to continue to rise.
When the secondary protection setting value is reached,

the heating is cut off and an audible and visual alarm is issued.
Studio configuration:
Control optional accessories: recorder, touch screen control,

exhaust and smoke exhaust, timed switch,
remote control
Studio optional accessories: trolley, tray, partition, mesh
Other requirements: According to the actual requirements of

customers for size and function. Design and manufacture equipment.

2. Our company provides the following conventional models for reference
