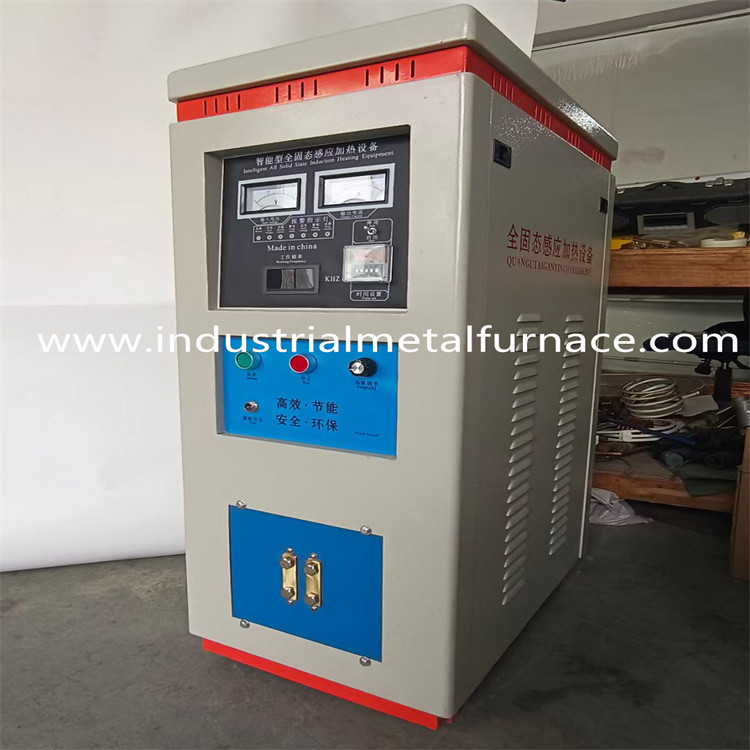

3-100 KGS Cast Iron Steel Industrial Metal Melting Furnace Medium Frequency
1. Application

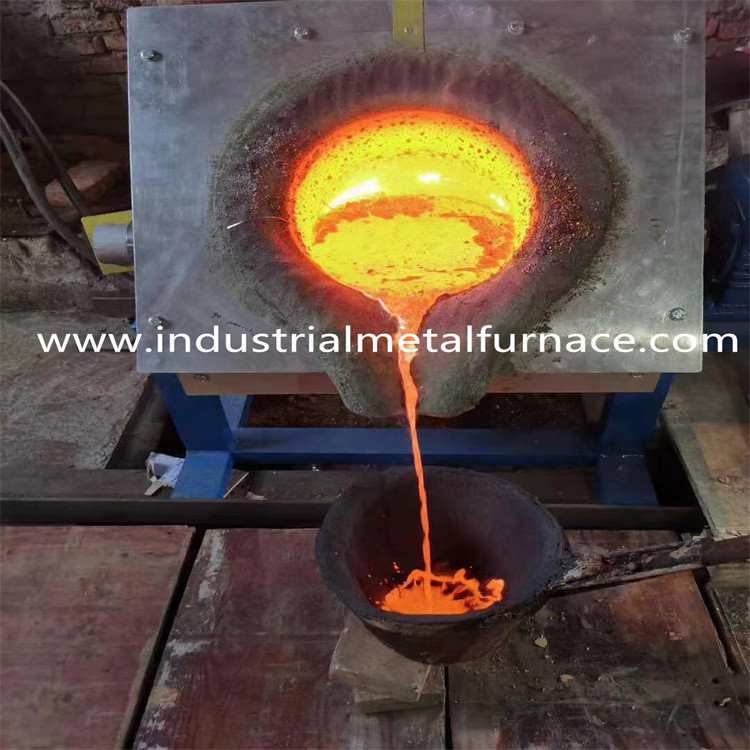

The industrial metal melting furnace is a small and compact type induction melting furnace.
The rated power of the metal foundry furnace is 15-160KW. The power module is of IGBT type.
The induction furnace requires a small size, and has a fast melting cycle.
2. Technical Parameters of Industrial Metal Melting Furnace
| Working Power | 15-160KW |
| Input voltage range | 70V-550V |
| Output oscillation frequency | 1-20KHZ |
| Capacity | 3-100KG cast iron, steel, stainless steel |
| Cooling type | Water cooling |
| Water pump | Supplied |
3.Power Selection Table
| Specifications and parameters of metal foundry furnace | |||
| Input power |
Melting capacity of Steel |
Furnace body size (length/width/height (mm) |
Power supply size(mm) |
|
15KW
|
3KG | 800*550*750 |
Cabinet 1:530*290*520 Cabinet 2 :500*230*460 |
|
25KW
|
5KG | 800*550*750 |
Cabinet 1::530*290*520 Cabinet 2:500*230*460 |
|
35KW
|
10KG |
830*560*920
|
Cabinet 1:630*340*540 Cabinet 2:500*230*460 |
|
45KW
|
18KG |
890*620*1020
|
Cabinet 1:700*350*620 Cabinet 2:500*230*460 |
|
70KW
|
25KG |
940*650*1100
|
Cabinet 1:700*350*620 Cabinet 2:550*400*510 |
|
90KW
|
40KG |
940*650*1100
|
Cabinet 1:820*420*890 Cabinet 2:550*400*510 |
|
110KW
|
50KG |
1050*790*1200
|
Cabinet 1:820*420*890 Cabinet 2:550*400*510 |
|
160KW
|
100KG |
1050*790*1200
|
Cabinet 1:750*500*960 Cabinet 2:550*400*510 |
4.Main Features
